12KV Load Break Fuse Cutout
SARAH Electric is well aware that product quality is the lifeline of an enterprise. Every 12KV Load Break Fuse Cutout that leaves the factory undergoes strict full inspection and sampling to ensure its integrity during transportation and installation. As you can see, our products are ready for shipment and delivered safely and on time to customers worldwide through standardized wooden box packaging and container transportation. Choosing SARAH means choosing professional, reliable, and global partners.

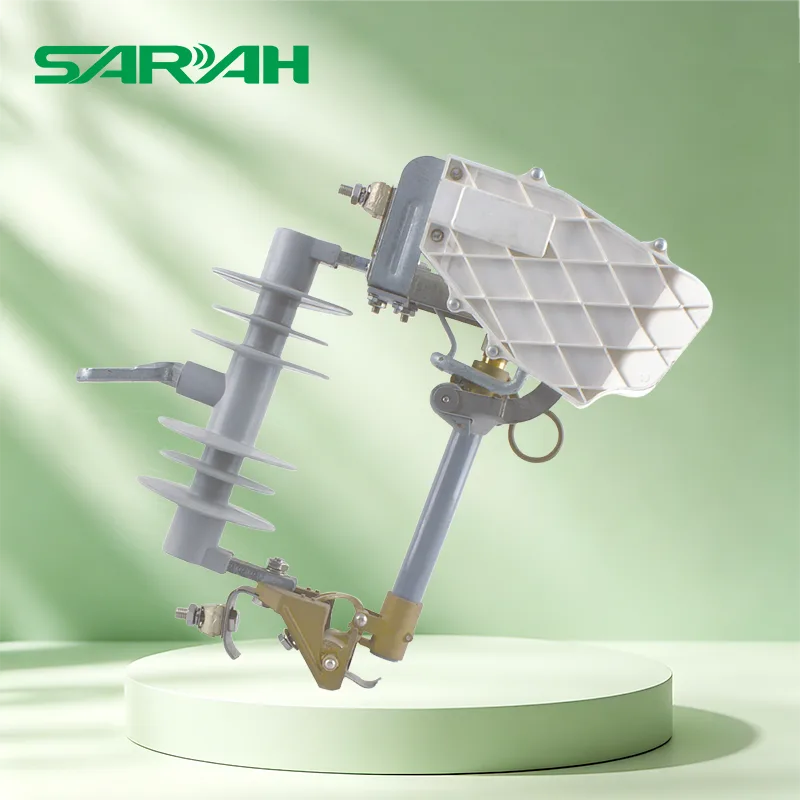

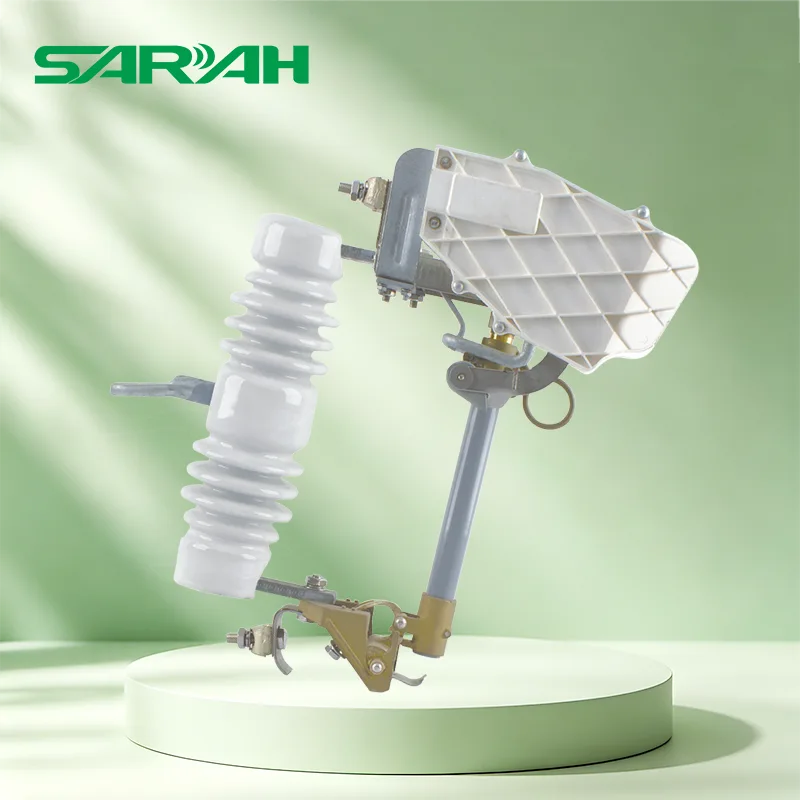

SARAH Electric is a manufacturer of 12KV Load Break Fuse Cutout. This product is a load switch type protection device specifically for medium and high voltage distribution networks ranging from 10kV to 38kV. Unlike traditional fuses that only have short-circuit protection function, the LBSJC series adopts a unique arc extinguishing device and dual fuse structure, enabling it to operate under load.
This means that operation and maintenance personnel can safely perform line switching operations without power interruption, greatly improving power supply reliability and operation and maintenance efficiency.
Advantage
1. The 1.12KV Load Break Fuse Cutout is equipped with a high-performance arc extinguishing cover and a specially designed arc contact. During the operation, the arc is rapidly elongated and cooled, ensuring safe and non reigning interruption of the load current at rated currents of 100A to 200A. This feature makes it a perfect replacement for the traditional combination of "isolation switch+fuse", simplifying the distribution structure and reducing equipment costs.
2. It adopts a dual protection design of "main fuse+nozzle fuse".
-Main fuse: responsible for daily overload protection, with sensitive response.
-Spray nozzle fuse: It melts instantly in the event of a short circuit fault, producing a large amount of arc extinguishing gas. With the help of an arc extinguishing cover, it quickly extinguishes the arc, ensuring that the equipment remains safe under the impact of a short circuit current of 8kA to 10kA.
3. High strength ceramic or silicone rubber composite insulators are used, which have excellent hydrophobicity and anti pollution flashover ability. Its leakage distance design is sufficient (up to 720mm), which can effectively prevent flashover accidents in harsh environments such as humidity, salt spray, and dust, ensuring long-term stable operation in cold, hot, and coastal areas.
Detailed technical parameters
|
Model No. |
Rated VoItage (kV) |
Rated Current (A) |
Breaking Current (kA) |
Impulse Voltage BIL (kV) |
Power Frequency Withstand Voltage (kV) |
Leakage Distance (mm) |
Weight (kg) |
Dimensions (cm) |
| LBSJC-1 | 10-15 | 100 | 8 | 110 | 40 | 250 | 7.3 | 45x34x10.5 |
| 200 | 10 | 110 | 40 | 250 | 7.5 | |||
| LBSJC-5 | 15-27 | 100 | 8 | 125 | 45 | 320 | 9.0 | 55x36x11.5 |
| 200 | 10 | 125 | 45 | 320 | 9.2 | |||
| LBSJC-9 | 24-27 | 100 | 8 | 150 | 65 | 490/530 | 11 | 55x36x15.5 |
| 200 | 10 | 150 | 65 | 490/530 | 11.2 | |||
| LBSJC-13 | 33-38 | 100 | 6 | 170 | 75 | 660 | 13.2/14.2 | 64x38x15.3 |
| 200 | 8 | 170 | 75 | 660 | 13.5/14.5 | |||
| LBSJC-13B | 33-38 | 100 | 6 | 180 | 90 | 720 | 13.2/14.2 | 64x38x15.3 |
| 200 | 8 | 180 | 90 | 720 | 13.5/14.5 |
Application
The 12KV Load Break Fuse Cutout is a supporting equipment for ring main units and pole mounted switches, used for segmentation, interconnection, and transformer protection.
Can provide fast protection for high-voltage motors and capacitor banks within the factory area.
Widely used for the protection of collection lines in wind farms and photovoltaic power stations.
Due to its simple structure, easy maintenance, and low cost, the 12KV Load Break Fuse Cutout is the choice for upgrading rural power grids.
What routine maintenance is required for 12kV load-break fuse cutouts?
|
Maintenance Items |
Maintenance Items |
Frequency |
|
Visual inspection |
Check for signs of discharge, deformation, or unusual odors |
Monthly |
|
Indicator check |
Check if the fuse striker has deployed (blown-fuse indication) |
Monthly |
|
Infrared temperature measurement |
Check for abnormal temperatures at terminals and contacts |
Annually |
|
Operational test |
Check for smooth manual opening/closing and proper interlock operation |
Annually |
|
Insulation resistance |
Measure insulation resistance in the de-energized state |
Every 1–3 years |
|
Circuit resistance |
Measure main circuit contact resistance |
Every 1–3 years |
|
Fuse replacement |
Replace fuse after operation (non-repairable) |
As needed |
|
Lubrication and maintenance |
Apply grease to moving parts of the operating mechanism |
Every 2–3 years |
Regarding the SARAH brand and shipping status
Yueqing Sarah Electric Co., Ltd. is located in Yueqing, Wenzhou, the famous electrical capital of China. Since its establishment in 2005, the company has been committed to the research and manufacturing of medium and high voltage electrical products, which have been exported to multiple countries such as Sweden, Finland, Norway, Spain, Argentina, Australia, and the Philippines.
