How Does a 110KV Power Transformer 20000KVA Improve High-Voltage Power Transmission Efficiency?

A 110KV Power Transformer 20000KVA is a critical electrical device designed for high-voltage power transmission and distribution systems. With its ability to step voltage levels up or down efficiently, this transformer plays an essential role in industrial facilities, substations, renewable energy projects, and urban power networks. This article explains the structure, working principles, applications, benefits, selection considerations, and maintenance methods of a 110KV 20000KVA power transformer while addressing common challenges faced by power system operators and engineering buyers.

1. What Is a 110KV Power Transformer 20000KVA?

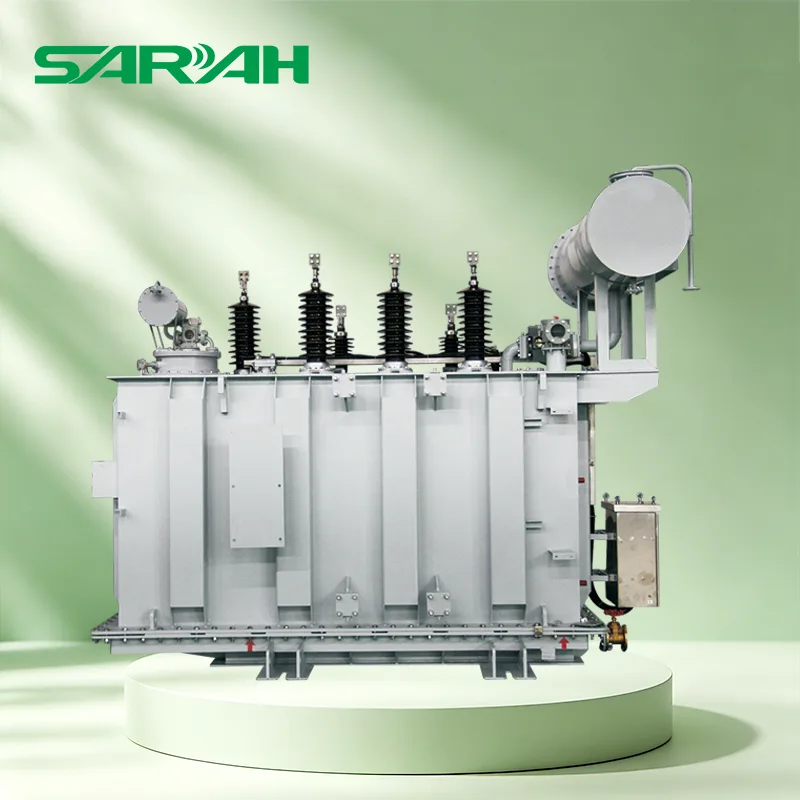

A 110KV Power Transformer 20000KVA is a high-capacity electrical transformer designed to handle a rated voltage of 110 kilovolts and an apparent power capacity of 20,000 kilovolt-amperes (20MVA). It is mainly used in power substations to transfer electrical energy between transmission networks and distribution systems.

Unlike small distribution transformers, this type of transformer is engineered for large-scale electricity transmission. It helps reduce energy losses during long-distance transmission and ensures stable power supply for industrial and commercial users.

The transformer usually consists of a core, windings, insulation system, cooling system, oil tank, bushings, protective devices, and monitoring components. Every part works together to guarantee safe operation under high voltage and heavy loads.

2. How Does a 110KV 20000KVA Power Transformer Work?

The working principle of a 110KV Power Transformer 20000KVA is based on electromagnetic induction. When alternating current flows through the primary winding, it creates a magnetic field inside the transformer core. This magnetic field induces voltage in the secondary winding, allowing electrical energy to transfer between circuits without direct electrical connection.

During operation, heat is generated due to electrical resistance and magnetic losses. Therefore, efficient cooling and insulation systems are essential to maintain transformer reliability.

3. Why Is a 110KV Power Transformer 20000KVA Important?

Modern power systems require reliable and efficient transmission equipment. A 110KV Power Transformer 20000KVA provides several important benefits for electricity networks.

• Improved Transmission Efficiency: High-voltage transmission reduces current losses and improves overall energy efficiency.
• Stable Power Supply: It supports continuous electricity delivery for industrial and public infrastructure.
• Large Load Capacity: The 20MVA capacity allows it to serve large factories, power plants, and substations.
• Enhanced Grid Reliability: Advanced protection systems reduce risks caused by overloads and electrical faults.

For industries with continuous production requirements, transformer reliability directly affects operational efficiency and production safety.

4. Where Are 110KV 20000KVA Power Transformers Used?

Due to their high capacity and excellent voltage conversion capability, 110KV 20000KVA transformers are widely used in various industries and infrastructure projects.

• Electrical substations
• Power generation plants
• Mining and metallurgy industries
• Large manufacturing facilities
• Renewable energy projects
• Urban power distribution networks
• Railway and transportation power systems

For example, renewable energy projects such as solar and wind farms often require reliable transformers to connect generated electricity to the public grid. A properly designed 110KV transformer ensures smooth energy transmission and grid compatibility.

5. Key Advantages of Using a 110KV Power Transformer 20000KVA

A high-quality transformer not only provides stable electrical performance but also reduces maintenance costs and unexpected downtime.

6. How to Select the Right 110KV Power Transformer 20000KVA?

Choosing the correct transformer requires careful consideration of electrical requirements, environmental conditions, and future expansion plans.

• Rated Voltage: Confirm that the transformer matches the 110KV transmission system requirements.
• Capacity Requirements: Ensure the 20MVA capacity meets current demand and possible future increases.
• Cooling Method: Select suitable cooling solutions according to installation conditions.
• Efficiency Level: Choose a transformer with low energy losses to reduce operating expenses.
• Protection Features: Consider safety devices such as temperature monitoring, gas protection, and overload protection.
• Manufacturer Experience: Work with experienced suppliers that provide quality control, technical support, and customized solutions.

Yueqing Sarah Electric Co., Ltd. focuses on providing reliable transformer solutions designed to meet different power system requirements. Professional engineering support helps customers choose suitable transformer models according to their application environments.

7. Maintenance Tips for Long-Term Transformer Performance

Regular maintenance is essential to ensure the stable operation of a 110KV Power Transformer 20000KVA. Proper inspection can prevent failures, improve efficiency, and extend service life.

• Regularly check transformer oil quality and insulation performance.
• Monitor operating temperature and cooling system performance.
• Inspect bushings, terminals, and connection points for abnormal conditions.
• Perform electrical testing according to operation standards.
• Check protective devices to ensure quick response during faults.
• Record operating data for predictive maintenance analysis.

Preventive maintenance is more economical than emergency repairs because transformer failures can lead to significant production losses and power interruptions.

8. Main Technical Parameters of 110KV 20000KVA Transformers

9. Frequently Asked Questions

10. Professional Transformer Solutions

A reliable 110KV Power Transformer 20000KVA is essential for achieving safe, efficient, and stable power transmission. From industrial facilities to large-scale energy projects, selecting the right transformer supplier can significantly influence system performance and long-term operating costs.

Yueqing Sarah Electric Co., Ltd. provides professional electrical equipment solutions with a focus on product quality, engineering support, and customer satisfaction. With advanced manufacturing capabilities and industry experience, the company helps customers build dependable power systems.
