220V Low Voltage Surge Arrester

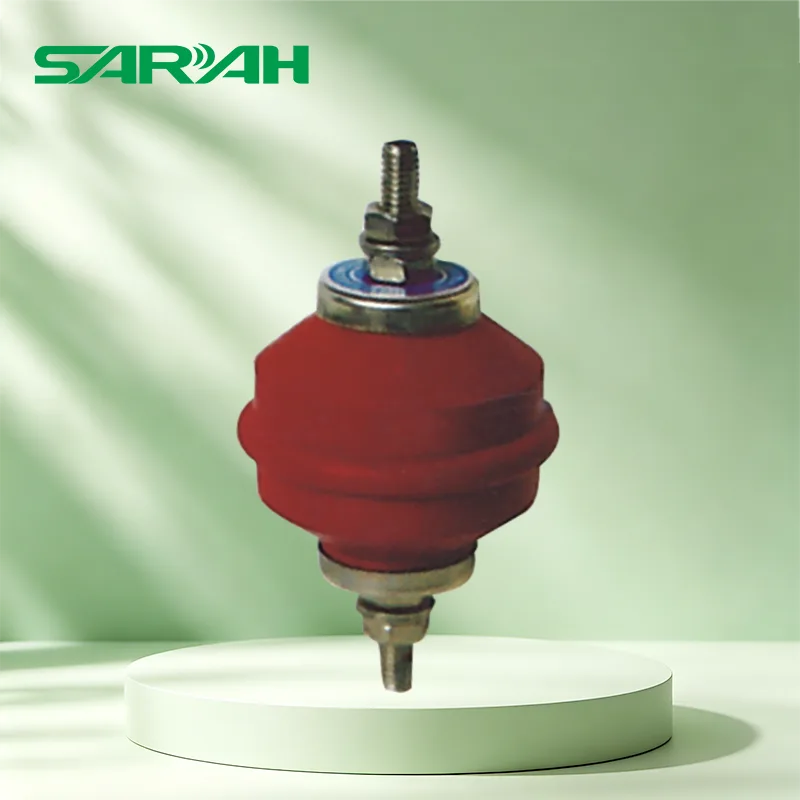

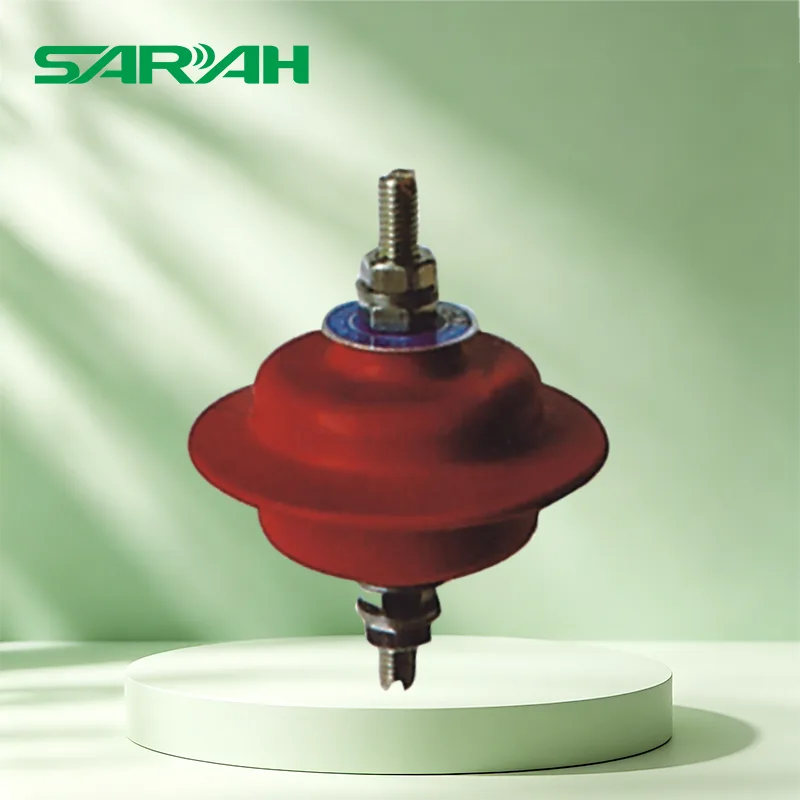

SARAH Electric's high quality 220V Low Voltage Surge Arrester, specifically models YH1.5W-0.28/1.3 and YH1.5W-0.5/2.6, are crucial devices used in the power system to protect electrical equipment from damage caused by lightning or operational overvoltages. For this product, we use zinc oxide valve plates as the core component, featuring excellent non-linear voltage current characteristics.
SARAH Electric is a supplier of durable 220V Low Voltage Surge Arrester, which is designed for low voltage power distribution systems and is useful for 380V/220V AC power grids. It is widely used for lightning protection and overvoltage protection of equipment such as distribution cabinets, transformers, motors, and capacitors. The structure is compact and easy to install. It is equipped with a screw type terminal at the top, which can be directly connected to wires or busbars. The bottom features a metal flange or threaded structure, making it easy to fix on supports or equipment.
Core technical parameters
Surge Arrester Discharge Counter
|
Model No. |
Rated Voltage(kV) |
Nominal Discharge Current (kA) |
Operation Current Range |
Current Impulse Residual Voltage (kV) |
Long Impulse Withstand Current 2ms (A) |
4/10 High Current Impulse Withstand(kA) |
| JS-8 | 3-66 | 5 | 50-5000 | <1 | 400-800 | 65-100 |
| JCQ | 3-220 | 10 | 50-5000 | <1 | 600-800 | 100 |
Surge Arrester Disconnector
| Power Frequency Current(A rms) |
2000 μs Long Duration Current Impulse(A) |
4/10 μs High Withstand Current(kA) |
|
| Time in Seconds | Current Level | ||
| <0.2 | 20 | 600 | 100 |
| <0.05 | 300 | ||
| <0.02 | 800 | ||
Low Voltage Surge Arrester Porcelain Type
| Destination | Code No. |
System Voltage kV (r,m,s) |
Rated Voltage kV (r,m,s) |
MCOV kV (r,m,s) |
8/20μs Lighting Current Impulse kV(crest) |
Reference Voltage At 1mA DC kV |
Long Impulse Withstand Current 2000 μs A(crest) |
4/10 μs High Current Impulse Withstand kV(crest) |
|
Low Voltage |
YC1.5W-0.28/1.3 | 0.22 | 0.28 | 0.24 | 1.3 | 0.6 | 50 | 10 |
| YC1.5W-0.5/2.6 | 0.38 | 0.5 | 0.42 | 2.6 | 1.2 | 50 | 10 |
Zinc Oxide Varister Block
|
Model No. |
Dimension(mm) |
Nominal Standard Discharge Current (kA) |
Rated Voltage (kV) |
MCOV (kV) |
8/20 μs Lightning Impulse Residual Voltage (kV) |
2000/ μs Square Impulse Current Withstand (A) |
4/10 μs High Current Impulse (kA) |
|
| Diameter | Height | |||||||
| D30 | Φ30±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.1 | 100 | 65 |
| D32 | Φ32±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.3 | 100 | 65 |
| D35 | Φ35±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.1 | 100 | 65 |
| D38 | Φ38±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.3 | 200 | 65 |
| D40 | Φ40±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.1 | 250 | 100 |
| D42 | Φ42±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.2 | 250 | 100 |
| D48 | Φ48±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.0 | 400 | 100 |
| D53 | Φ53±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 8.9 | 400 | 100 |
| D60 | Φ60±0.2 | 24±0.5 | 20 | 3-3.4 | 2.55 | 9.1 | 600 | 100 |
| D70 | Φ70±0.2 | 24±0.5 | 20 | 3-3.4 | 2.55 | 9.2 | 800 | 100 |
Product advantages
The 220V Low Voltage Surge Arrester is equipped with high-quality zinc oxide valve plates, featuring rapid response, low residual voltage and high protection level.
The gapless structure and no backflow feature mean that our product requires no regular testing or replacement.
The outer shell is made of silicone rubber or ceramic materials, which are resistant to dirt, ultraviolet rays, and temperature variations. The Low Voltage Surge Arrester is suitable for outdoor or harsh industrial environments.
Top screw design, supporting horizontal or vertical installation, suitable for various distribution cabinet structures.
Application
Low voltage distribution cabinets, box type substations, and output terminals of photovoltaic inverters
Power distribution systems in factory workshops, commercial buildings, and residential communities can use our device
Places such as communication base stations, data centers, and hospitals that have high requirements for power supply continuity need to use Low Voltage Surge Arrester
Common Faults and Solutions
|
Failure Modes |
Causes |
Symptoms |
Action |
|
MOV aging/degradation |
Cumulative damage from repeated surge strikes |
Increased leakage current; overheating |
Replace SPD module |
|
Thermal runaway |
Sustained overvoltage → increased leakage current → rising temperature (vicious cycle) |
Casing becomes hot to the touch; discoloration |
Disconnect power immediately and replace |
|
Short-circuit failure |
MOV breakdown/short circuit |
Backup protection operates (tripping/fuse blows) |
Replace SPD; check backup protection |
|
Open-circuit failure |
Thermal trip mechanism disconnects |
Indicator window turns red; protection lost |
Replace SPD module |
|
External short circuit |
Wiring errors or insulation damage |
Backup protection operates |
Check wiring; replace SPD |
|
GDT follow current |
Gas discharge tube fails to self-extinguish after conduction |
Power-frequency follow current persists |
Check for proper MOV coordination |
Delivery and Services
Standard models are in ample stock and can be delivered within 72 hours.
Customized products with specific voltage levels or installation methods can be provided according to customer requirements.
SARAH offers installation guidance, parameter selection, and system lightning protection scheme design services.
This 220V Low Voltage Surge Arrester has obtained multiple international certifications and is widely used in the fields of power, communication, transportation, etc. at home and abroad. It is a favored device for ensuring the safe and stable operation of low-voltage systems.
