What Is a 33kV Pole Mounted Transformer and How Does It Support Reliable Power Distribution?
A 33kV Pole Mounted Transformer is a medium-voltage distribution transformer installed on utility poles or supporting structures to reduce electricity from a 33kV distribution network to a lower voltage suitable for residential, agricultural, commercial, infrastructure, or selected industrial loads. Its elevated installation can help conserve ground space and integrate efficiently with overhead distribution networks. However, successful deployment depends on correct capacity selection, voltage ratio, insulation level, protection, structural loading, environmental conditions, and compliance with the applicable utility requirements. This guide explains the key factors project engineers, distributors, contractors, and power-system buyers should consider before specifying a transformer.
Table of Contents
- What Is a 33kV Pole Mounted Transformer?
- How Does a 33kV Pole Mounted Transformer Work?
- What Are the Main Components?
- What Technical Specifications Matter?
- Where Is It Used?
- What Should Buyers Consider Before Selection?
- What Installation Factors Affect Performance?
- How Can Reliability and Service Life Be Improved?
- What Common Purchasing Mistakes Should Be Avoided?
- Frequently Asked Questions
- Conclusion

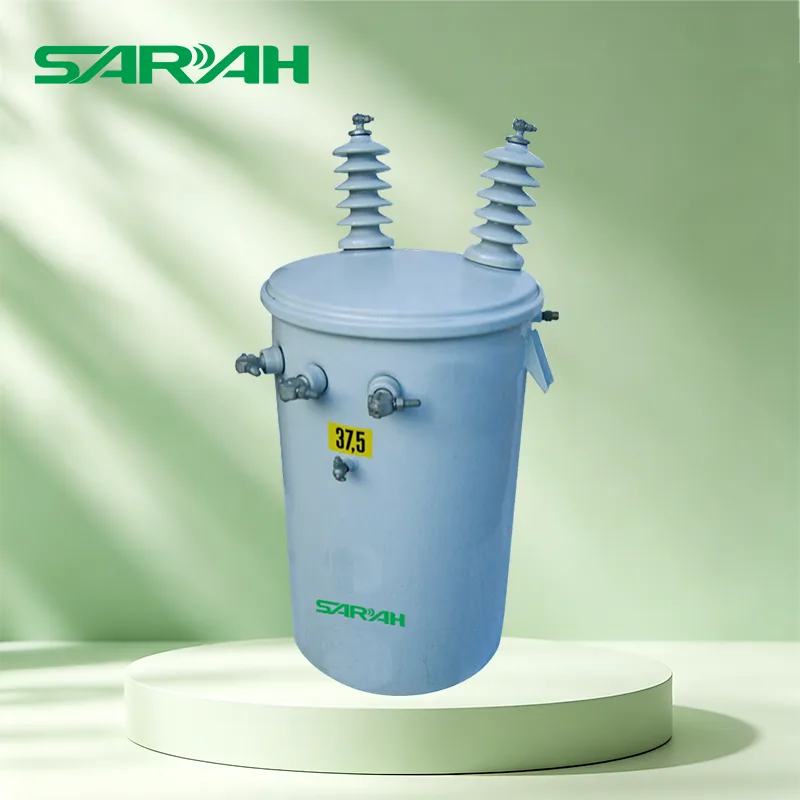

What Is a 33kV Pole Mounted Transformer?
A 33kV Pole Mounted Transformer is a distribution transformer designed to receive electrical power from a medium-voltage network with a nominal primary voltage of 33kV and transform it to a lower voltage for downstream users. The transformer is installed above ground on poles or an engineered overhead support arrangement rather than being positioned inside a ground-level enclosure.
This configuration is particularly useful where overhead distribution remains the practical infrastructure choice. Rural electrification, agricultural facilities, dispersed communities, roadside infrastructure, and some commercial loads can benefit from a transformer positioned close to the point of consumption.
Pole-mounted transformers can be designed in single-phase or three-phase configurations depending on the distribution network and load requirements. Typical transformer construction may use an oil-immersed design with natural cooling, although the final configuration should always be determined by the project specification and applicable utility standards.
Key point: “33kV” describes the primary voltage class. It does not by itself define the transformer's capacity, secondary voltage, phase arrangement, insulation system, or protection configuration.
How Does a 33kV Pole Mounted Transformer Work?
The basic operating principle is electromagnetic induction. Electrical energy enters the transformer through the high-voltage winding. The magnetic field produced in the core induces a corresponding voltage in the low-voltage winding. By using different numbers of turns in the primary and secondary windings, the transformer reduces the incoming voltage to the level required by downstream electrical equipment.
01
33kV Input
Medium-voltage electricity enters through the HV side.
02
Magnetic Transformation
The core and windings transfer energy through electromagnetic induction.
03
Lower-Voltage Output
The LV side supplies electricity to connected loads.
The transformer does not generate electrical energy. Instead, it changes the voltage level while transferring power between circuits. The actual secondary voltage may vary according to the local distribution system, project specification, and utility requirements.
What Are the Main Components?
A reliable pole-mounted transformer is more than a tank and two windings. Each component contributes to electrical performance, thermal management, mechanical strength, or operational safety.
| Component | Primary Function | Why It Matters |
|---|---|---|
| Magnetic Core | Provides the magnetic path | Influences no-load losses and overall efficiency |
| HV & LV Windings | Transfer electrical energy | Affects voltage ratio, losses, temperature rise, and short-circuit performance |
| Transformer Tank | Contains the active assembly and insulating medium | Provides mechanical and environmental protection |
| Bushings | Provide insulated electrical connections | Critical for safe HV and LV connections |
| Cooling System | Dissipates heat generated during operation | Helps control temperature rise and preserve insulation life |
| Tap Changer | Adjusts the effective winding ratio | Helps accommodate specified network voltage conditions |
What Technical Specifications Matter?
A transformer should never be selected only by its primary voltage. The complete electrical specification must match the network, connected load, installation environment, and local authority requirements.
| Parameter | What to Confirm |
|---|---|
| Primary Voltage | 33kV nominal system voltage and applicable maximum system voltage |
| Secondary Voltage | Required utilization voltage such as 400V, 415V, 230V, or another project-specific level |
| Rated Capacity | kVA rating based on present load, future demand, diversity, and permissible loading |
| Phase | Single-phase or three-phase according to network design |
| Frequency | 50Hz or 60Hz according to the local power system |
| Cooling | Common oil-immersed configurations include ONAN; other arrangements depend on the design |
| Impedance | Must coordinate with system fault levels and voltage regulation requirements |
| Insulation Level | Power-frequency withstand and lightning impulse withstand requirements |
| Tap Range | Specified adjustment range and tap position according to network voltage conditions |
| Applicable Standard | IEC 60076, IEEE/ANSI, national standards, or utility-specific specifications as applicable |
IEC 60076 is commonly referenced for power transformer design and testing, but the applicable standard should be confirmed against the purchasing authority and destination market. Some utilities also issue detailed technical specifications covering dimensions, fittings, losses, testing, protection, mounting, and documentation.
Where Is It Used?
The elevated design makes a 33kV pole-mounted transformer particularly suitable for overhead distribution networks where power needs to be delivered efficiently without constructing a dedicated ground-level transformer room.
- Rural electrification: Supports electricity distribution to dispersed communities and remote loads.
- Agricultural facilities: Can supply irrigation pumps, farm buildings, processing equipment, and other distributed loads.
- Residential distribution: Suitable for selected overhead residential networks when the local utility permits this configuration.
- Commercial areas: Can serve shops, small facilities, roadside businesses, and other distributed commercial loads.
- Infrastructure projects: May be used for selected lighting, communications, transport, and public-service loads.
- Light industrial applications: Appropriate where the required load and installation conditions fall within the transformer's design range.
Actual suitability depends on load size, network architecture, pole-loading capability, protection coordination, environmental conditions, and the applicable utility specification.
What Should Buyers Consider Before Selection?
For distributors, EPC contractors, utilities, and project owners, the most common procurement challenge is not finding a transformer with “33kV” on the nameplate. The real challenge is making sure every important parameter matches the actual project.
- Define the load profile. Calculate the current demand and consider reasonable future expansion rather than relying only on the present peak load.
- Confirm the voltage ratio. The secondary voltage must match the downstream distribution system and equipment.
- Determine phase requirements. Single-phase and three-phase configurations serve different network arrangements.
- Check environmental conditions. Ambient temperature, altitude, humidity, dust, salt, rainfall, and corrosion can influence the required design.
- Review insulation requirements. Lightning exposure and network characteristics make insulation coordination particularly important for overhead systems.
- Confirm protection. Fuse arrangements, surge protection, grounding, switching equipment, and other accessories should coordinate with the network protection scheme.
- Verify mechanical loading. The combined weight and installation arrangement must be compatible with the pole and supporting hardware.
- Request complete test documentation. Routine test reports, nameplate information, drawings, certificates, and other documents should be agreed before production.
What Installation Factors Affect Performance?
Proper installation is essential because even a correctly designed transformer can experience operational problems if the supporting structure, electrical connections, grounding, or protection system is inadequate.
| Installation Area | Important Consideration |
|---|---|
| Structural Support | Pole strength, mounting hardware, transformer weight, wind loading, and mechanical stability |
| Grounding | Correct grounding arrangements according to the local electrical code and utility specification |
| Surge Protection | Appropriate coordination for lightning and transient overvoltage exposure |
| Clearance | Maintain required electrical clearances and safe working distances |
| Environment | Account for temperature, moisture, pollution, coastal salt, dust, and altitude |
How Can Reliability and Service Life Be Improved?
Preventive maintenance should be based on the manufacturer's instructions, utility procedures, operating environment, and applicable regulations. The objective is to identify developing problems before they become failures or unplanned outages.
- Inspect the transformer exterior for corrosion, physical damage, oil leakage, or abnormal conditions.
- Check bushings, connections, mounting hardware, and grounding arrangements during scheduled inspections.
- Monitor loading and temperature where appropriate for the installation.
- Maintain surge protection and associated distribution equipment according to the protection plan.
- Use appropriate transformer-oil inspection and testing procedures where applicable.
- Keep test reports, maintenance records, nameplate information, and replacement-part data accessible throughout the equipment life cycle.
Maintenance requirements vary significantly between transformer designs and operating environments. A coastal installation, for example, may require greater attention to corrosion protection than an inland installation with low environmental exposure.
What Common Purchasing Mistakes Should Be Avoided?
Mistake 1: Focusing Only on Price
A lower purchase price may not represent a lower total project cost. Losses, transportation, installation, maintenance, spare parts, downtime, and replacement requirements can all affect the long-term cost.
Mistake 2: Ignoring Local Standards
A transformer designed for one market may require changes for another utility's specifications. Standards, testing, fittings, insulation levels, and documentation should be confirmed before ordering.
Mistake 3: Underestimating Future Loads
Selecting capacity strictly according to today's consumption can create limitations when a facility expands or additional consumers are connected.
Mistake 4: Treating Protection as an Afterthought
The transformer should be considered together with upstream and downstream protection, surge protection, grounding, and switching arrangements.
Frequently Asked Questions
What does 33kV mean in a pole mounted transformer?
33kV generally refers to the nominal primary voltage class of the transformer and the medium-voltage network to which it is connected. The actual equipment ratings must also account for the applicable maximum system voltage and insulation requirements.
Can a 33kV pole mounted transformer be used for residential power distribution?
Yes. Pole-mounted distribution transformers are commonly used in residential distribution networks where overhead infrastructure is appropriate. The transformer capacity and secondary voltage must match the local distribution design.
Is a 33kV transformer always three-phase?
No. 33kV pole-mounted transformers can be designed for single-phase or three-phase applications. The required configuration depends on the network and connected load.
What secondary voltage can a 33kV transformer provide?
The secondary voltage is project-specific. Common distribution levels include 400V or 415V three-phase systems and other low-voltage arrangements, but the final value must be confirmed against the local network specification.
What standard is commonly associated with distribution transformers?
IEC 60076 is widely used as a reference for power transformer requirements and testing. Depending on the destination market, IEEE, ANSI, national standards, or utility-specific specifications may also apply.
How should transformer capacity be selected?
Capacity should be determined from the expected load, peak demand, diversity, future expansion, ambient conditions, voltage requirements, and the utility's loading criteria. Simply choosing the largest available rating is not necessarily appropriate.
Why is pole installation useful for distribution projects?
Pole installation can integrate the transformer directly into an overhead distribution network while reducing the need for ground-level transformer space. It is especially relevant where overhead lines are already part of the distribution infrastructure.
Conclusion
A 33kV Pole Mounted Transformer plays an important role in converting medium-voltage electricity into usable distribution power for overhead networks. Its compact elevated configuration can be well suited to rural electrification, agricultural facilities, residential networks, commercial distribution, infrastructure projects, and selected industrial applications.
The most important purchasing decision is not simply choosing a transformer labeled “33kV.” Buyers should evaluate the complete electrical specification, including capacity, secondary voltage, phase, frequency, insulation level, impedance, cooling method, tap range, protection system, installation environment, applicable standards, testing, documentation, and mechanical requirements.
For project owners and distributors, working with an experienced manufacturer can simplify specification confirmation and customization. Yueqing Sarah Electric Co., Ltd. can support project discussions involving distribution transformer requirements, technical specifications, application conditions, and customized configurations.
Looking for a 33kV transformer solution for your distribution project? Share your voltage ratio, capacity, phase, frequency, installation environment, and applicable standard with Yueqing Sarah Electric Co., Ltd. to discuss a suitable configuration. Please contact us for technical consultation and project-specific transformer requirements.
