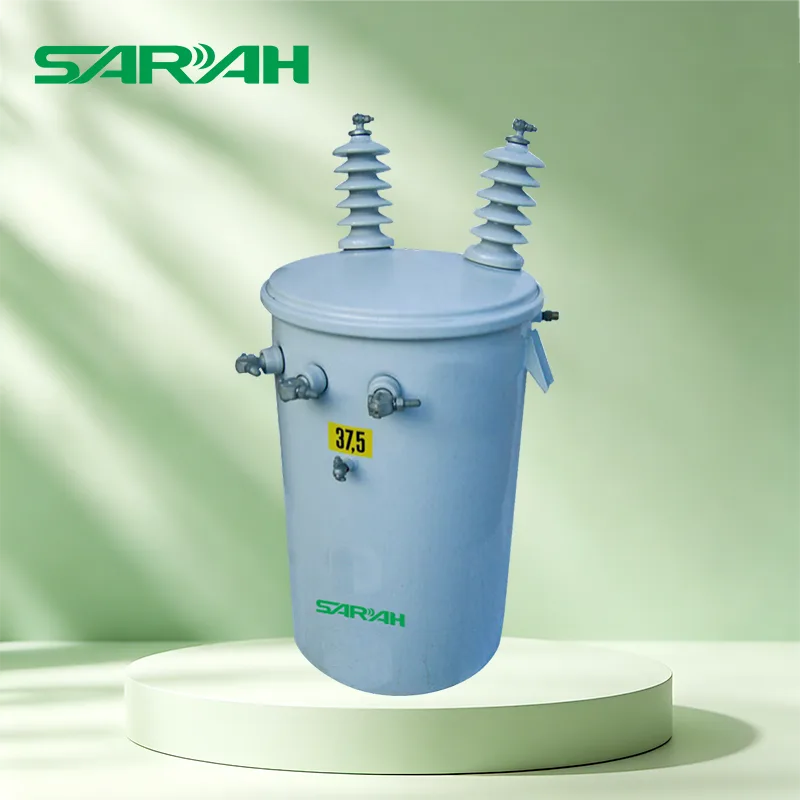

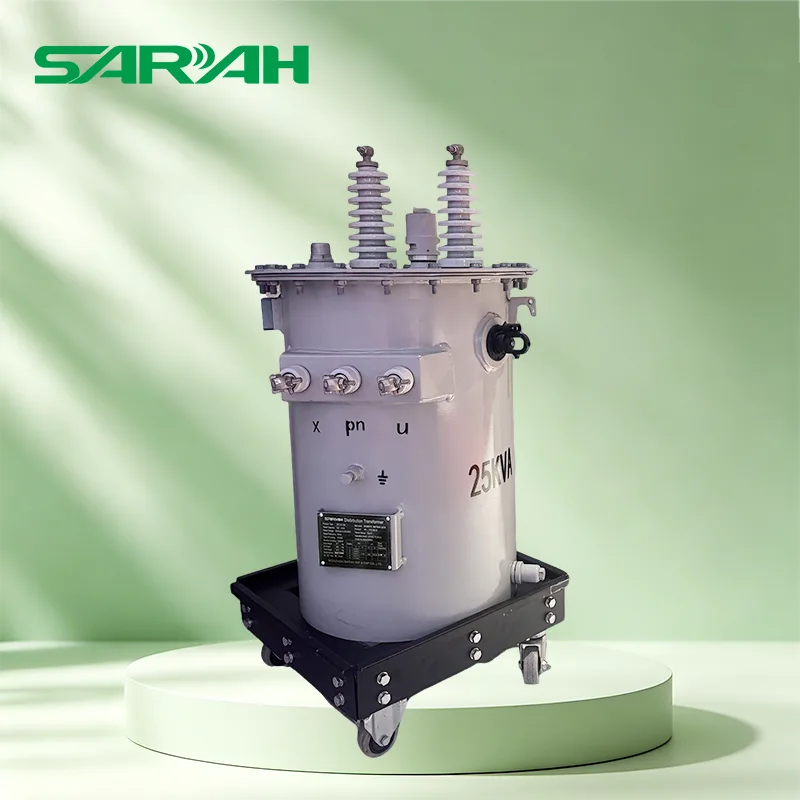

24kV Pole Mounted Transformer

SARAH Electric's durable 24kV Pole Mounted Transformer is designed for decentralized distribution networks of urban and rural residential loads, suitable for light and diverse power applications. The product complies with international standards such as ANSI, IEC, GB, SANS, etc., adopts a fully sealed structure, has high overload capacity and system reliability, and is suitable for typical working conditions of power utility distribution systems.

Advantage

The 1.24kV Pole Mounted Transformer meets or exceeds international standards such as ANSI, IEC, GB, SANS, ensuring global applicability.

We adopt a fully sealed design to effectively prevent environmental factors from affecting and improve the lifespan of outdoor instrument transformers.

SARAH Electric adopts C.R.G.O. coil iron core or amorphous alloy iron core to reduce energy consumption and improve equipment operating efficiency.

24kV Pole-Mounted Transformer vs. Standard Distribution Transformer: What Is the Difference?

The primary advantage of 24kV pole-mounted transformers is that they eliminate the need to build substations; they have a small footprint and are suitable for distributed power distribution.

Technical Specifications

Application scenarios

The 24kV Pole Mounted Transformer is suitable for residential, commercial, and rural power grid renovation.

It meets diverse electricity needs such as light industry and agricultural irrigation.

Support the grid connection of distributed energy sources such as solar and wind power.

Quality assurance

Through a rigorous quality control system, Sarah Electric ensures that its 24kV Pole-Mounted Transformers feature:

✓ Reliable Electrical Performance

✓ Stable Long-term Operation

✓ Strong Environmental Adaptability

✓ Compliance with International Standards

Our quality inspections include:

1. Raw Material Inspection

Covers the properties of silicon steel sheets, copper/aluminum winding materials, insulation materials, transformer oil quality, and high/low-voltage bushings.

All materials comply with design specifications and relevant standards.

2. Manufacturing Process Control

Comprehensive inspections are conducted during core manufacturing, winding processing, and equipment assembly, including checks on winding dimensions and turn counts, insulation structure, core assembly, internal clearances, and fastener torque.

3. Electrical Performance Testing

Each transformer undergoes rigorous testing before leaving the factory:

● Winding Resistance Test

● Transformer Ratio Test

● Insulation Resistance Test

● Power Frequency Withstand Test

● No-load Loss Test

● Load Loss Test

● Impedance Test

4. Safety & Reliability Inspection

Focuses on tank sealing performance, oil leakage checks, anti-corrosion coating quality, connection reliability, and the functionality of protective accessories.

5. Final Inspection & Documentation

Before shipment, we conduct a final inspection to verify the appearance, nameplate, and parameters, and to check the packaging.

We also provide complete Factory Test Reports, Quality Certificates, and technical documentation.
