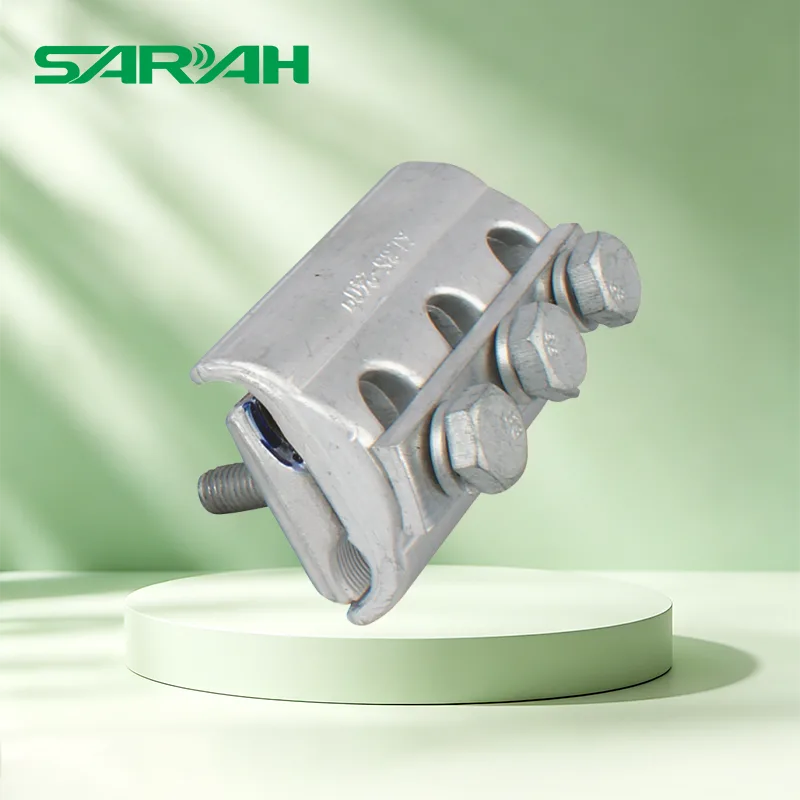

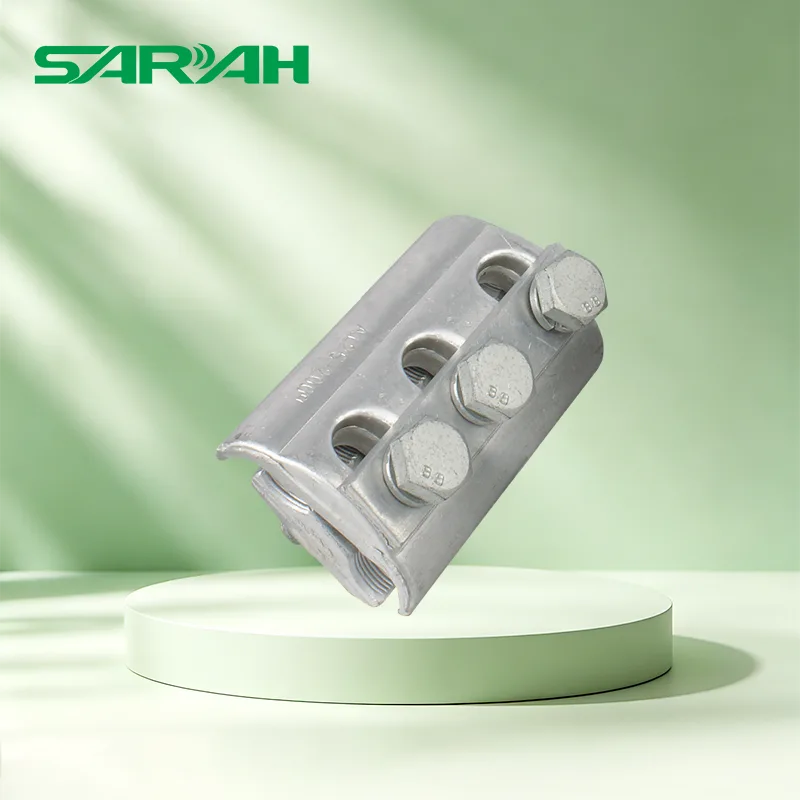

Aluminum Parallel Groove Clamp
SARAH Electric is the professional supplier of Aluminum Parallel Groove Clamp (CAPG-C series), the product has a high-strength aluminum forging process, a copper-aluminum compatible design, and an easy installation method. It has become the preferred choice for connecting copper and aluminum wires in power systems. Whether it is high-load power lines or communication lines in harsh outdoor environments, the CAPG-C series clamps can provide stable connection performance and possess engineering safety and efficiency.
This is an Aluminum Parallel Groove Clamp produced by the SARAH Electric, with the model number CAPG-C series. When you need to make the parallel connection of copper and aluminum conductors in the power system, you can choose our discounted roll products. Using the high-strength aluminum alloy forging process, it ensures excellent electrical connection performance and mechanical strength even in high-load and harsh outdoor environments.
It is suitable for the parallel connection between copper conductors (CU) and aluminum conductors (AL). The product is manufactured through a high-strength aluminum alloy forging process and its surface has been treated for corrosion resistance. It features excellent electrical conductivity, corrosion resistance and mechanical strength, and is widely used in overhead line connections in fields such as power, communication, and rail transportation.
Product Specifications and Applicable Conductors
|
Model |
Applicable Conductor Cross-Section (mm²) |
Bolt Specifications |
|
CAPG-C1 |
CU 6–50,AL 16–70 |
3×M10 |
|
CAPG-C2 |
CU 10–95, AL 25–150 |
3×M10 |
|
CAPG-C3 |
CU 25–185, AL 35–200 |
3×M10 |
|
CAPG-C4 |
CU 35–240, AL 35–300 |
3×M10 |
Note: All models adopt the same 3×M10 bolt specification to ensure convenient installation and reliable connection.
Core technical parameters
Forge Type Copper-Aluminum & Aluminum Parallel-Groove Clamp
|
Model No. |
Suitable Section Of Conductor(m㎡) |
Bolts |
| CAPG-A1 | CU 6-50 AL 16-70 | 1xM8 |
| CAPG-A2 | CU 10-95 AL 25-150 | 1xM8 |

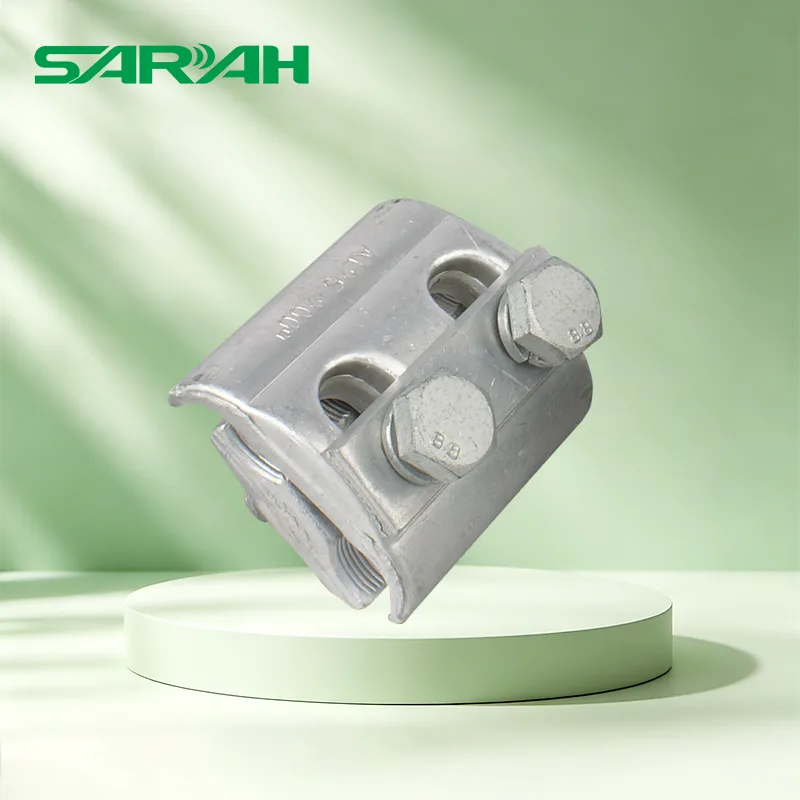

| CAPG-B1 | CU 6-50 AL 16-70 | 2xM10 |
| CAPG-B2 | CU 10-95 AL 25-150 | 2xM10 |
| CAPG-B3 | CU 25-185 AL 35-200 | 2xM10 |
| CAPG-C1 | CU 6-50 AL 16-70 | 3xM10 |
| CAPG-C2 | CU 10-95 AL 25-150 | 3xM10 |
| CAPG-C3 | CU 25-185 AL 35-200 | 3xM10 |
| CAPG-C4 | CU 35-240 AL 35-300 | 3xM10 |

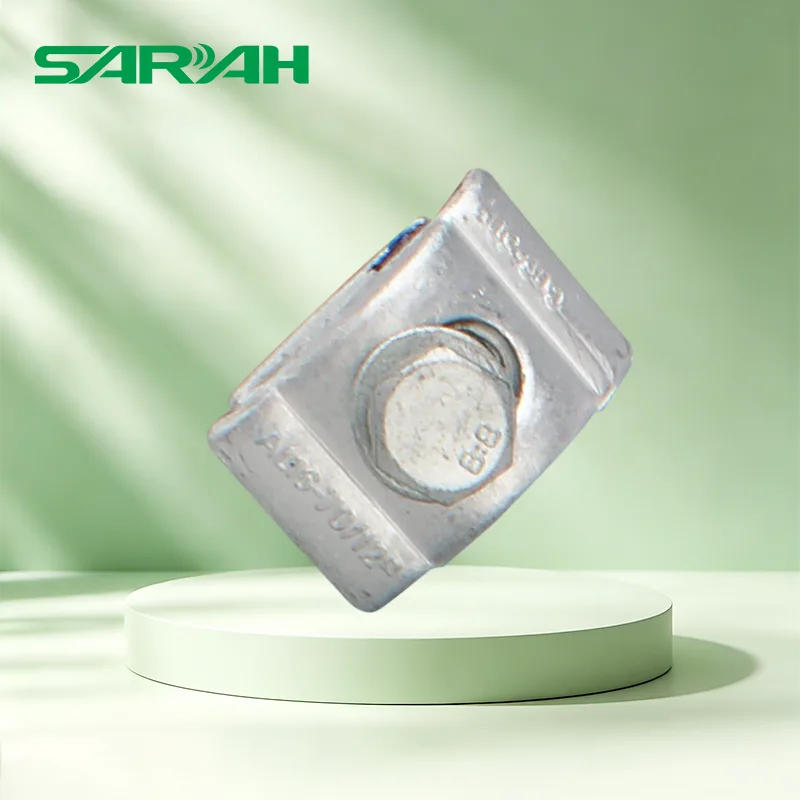

| APG-A1 | AL 16-70 | 1xM8 |
| APG-A2 | AL 16-150 | 1xM8 |
| APG-B1 | AL 16-35 | 2xM10 |
| APG-B2 | AL 16-70 | 2xM10 |
| APG-B3 | AL 16-150 | 2xM10 |
| APG-C1 | AL 16-70 | 3xM10 |
| APG-C2 | AL 16-150 | 3xM10 |
| APG-C3 | AL 25-200 | 3xM10 |
| APG-C4 | AL 35-300 | 3xM10 |
Specific Form Aluminum Parallel Groove Clamp
Aluminum Parallel Groove Clamp|
Model No. |
Suitable Type of Conductor |
| JBT-16-120A | LGJ-16-120 |
| JBT-16-120B | |
| JBT-50-240A | LGJ-50-240 |
| JBT-50-240B | |
| JBT-120-300A | LGJ-120-400 |
| JBT-120-300B | |
| JBT-16-120 | 16-120 |
| JBT-50-240 | 50-240 |
| JB-TL-16-120 | 16-120 |
| JB-TL-50-240 | 50-240 |
JB Series Aluminum Parallel-Groove Clamp
|
Model No. |
Suitable section of conductor | Dimensions(mm) | Weight(kg) | ||||
| a | M | L | r | h | |||
| JB-0 | 16-25 | 38 | 10 | 72 | 3.5 | 40 | 0.2 |
| JB-1 | 35-50 | 45 | 12 | 80 | 5 | 45 | 0.4 |
| JB-2 | 70-95 | 52 | 12 | 112 | 7 | 50 | 0.7 |
| JB-3 | 120-150 | 62 | 16 | 140 | 8.9 | 65 | 1.1 |
| JB-4 | 185-240 | 71 | 16 | 142 | 11 | 65 | 1.3 |
JBT Series Copper Parallel-Groove Clamp
|
Model No. |
Suitable section of conductor | Dimensions(mm) | ||||
| a | M | L | r | h | ||
| JBT-0 | 16-25 | 35 | 10 | 55 | 3.5 | 35 |
| JBT-1 | 35-50 | 40 | 10 | 70 | 5 | 35 |
| JBT-2 | 70-95 | 50 | 12 | 100 | 6.5 | 45 |
| JBT-3 | 120-150 | 63 | 12 | 110 | 8.5 | 50 |
| JBT-4 | 185-240 | 6.5 | 12 | 110 | 10.5 | 50 |
Compression Tap
|
Model No. |
Specification | Pressing Connection | |||||
| Main Conductor | Tap Conductor |
Press Mold |
Times | Length | |||
|
Diameter (mm) |
Cross Section (m㎡) |
Diameter (mm) |
Cross Section (m㎡) |
||||
| (mm)+1 | |||||||
| CRH11 | 4.8-8.2 | 16-35 | 4.8-8.2 | 16-35 | 0-0 | 2 | 44 |
| CRH21 | 8.3-14.0 | 50-95 | 4.8-9.6 | 16-50 | 1-2 | 3 | 63 |
| CRH22 | 8.3-14.0 | 50-95 | 8.3-14.0 | 50-95 | 1-2 | 3 | 63 |
| CRH31 | 13.0-22.4 | 95-240 | 4.8-11.4 | 16-70 | 3-5 | 3 | 63 |
| CRH32 | 13.0-22.4 | 95-240 | 11.6-16.0 | 70-150 | 3-5 | 3 | 63 |
| CRH41 | 16.2-22.4 | 150-240 | 16.2-22.4 | 150-240 | 3-5 | 4 | 114 |
| CRH51 | 22.4-25.9 | 300-400 | 10.0-14.5 | 70-120 | 3-5 | 3 | 89 |
| CRH52 | 22.4-25.9 | 300-400 | 14.6-18.0 | 120-185 | 3-5 | 3 | 89 |
| CRH53 | 22.4-25.9 | 300-400 | 18.9-22.4 | 185-240 | 3-5 | 4 | 118 |
| CRH54 | 22.4-25.9 | 300-400 | 22.4-25.9 | 300-400 | 3-5 | 4 | 118 |
Product advantages
Aluminum Parallel Groove Clamp
The product is manufactured using a high-strength aluminum alloy forging process, ensuring that it maintains excellent mechanical strength and corrosion resistance even under high-load conditions and in harsh outdoor environments.
When you need to connect copper wires and aluminum wires in parallel, use the Aluminum Parallel Groove Clamp. This can effectively solve the electrochemical corrosion problem that occurs when directly connecting copper and aluminum wires.
The unified 3×M10 bolt specification ensures easy installation and secure connection.
Widespread application
The Aluminum Parallel Groove Clamp is suitable for the connection of overhead lines in fields such as power, communication, and rail transportation, meeting various engineering requirements.
Product Delivery
Inventory status: Abundant stock available, supporting bulk purchases.
Delivery cycle: Shipment will be dispatched within 1-3 working days after placing the order.
Packaging method: Standard cardboard box packaging, 100 pieces per box, ensuring transportation safety.
Logistics support: Supports domestic express delivery and logistics transportation, and can provide export packaging services.
