12KV Fuse Links

SARAH Electric's 12KV fuse links are designed for 12kV distribution systems. We use advanced spray arc extinguishing technology and strictly follow the IEC 60282-1 international standard. The product has fast breaking, high current limiting characteristics, and excellent electrical stability, making it an ideal protective component for modern smart grids and industrial distribution systems.

Technical Specifications

Advantage

Equipped with an efficient arc extinguishing tube, it quickly decomposes and produces gas at the moment of fault current generation, forming a high-pressure airflow for longitudinal arc blowing, achieving millisecond level arc extinguishing.

Effectively suppress overvoltage and protect downstream sensitive equipment from transient impacts.

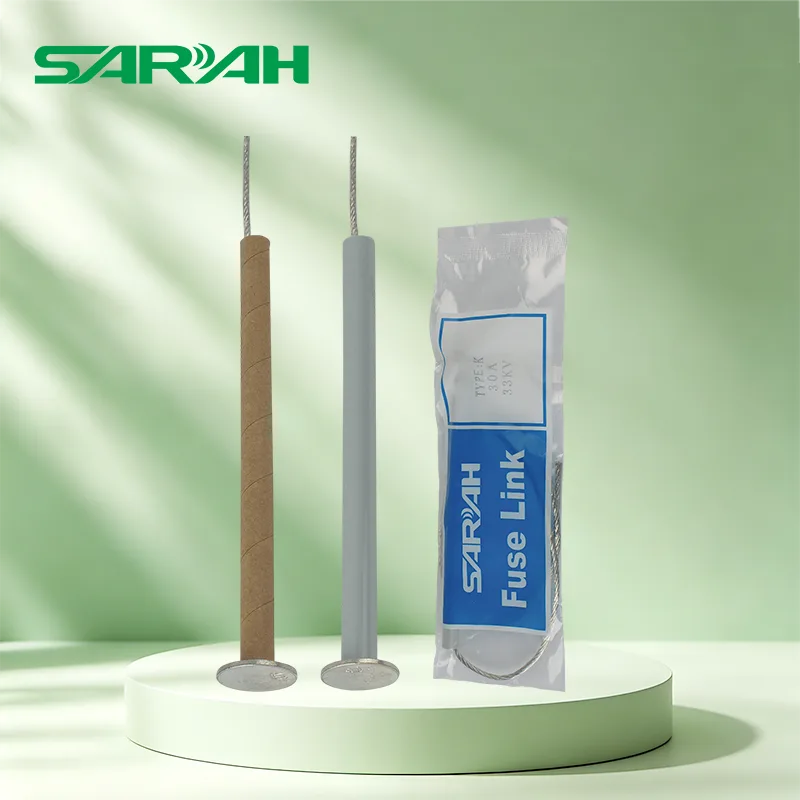

Non detachable head type: Compact structure, 12KV fuse links suitable for installation environments with limited space, cost-effective.

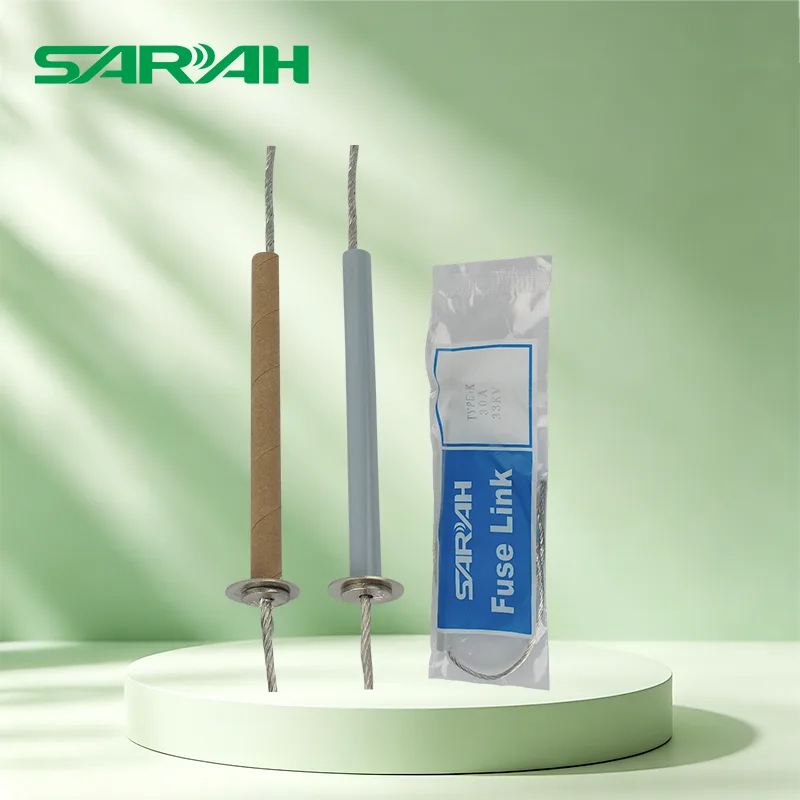

Detachable head type: easy to quickly replace the melt on site, supports single tail and double tail designs, and meets different wiring requirements.

The rated current covers 1A to 200A, with a total of 20 specifications, accurately matching various load characteristics.

K-type (fast) and T-type (delayed) dual characteristics are optional, flexibly responding to complex working conditions such as motor start-up and transformer excitation inrush current.

Specification parameters and selection guide

Key dimensional parameters

Pipe diameter: 19.0 ± 0.2mm (uniform specification, compatible)

11kV system length: 580-600mm

33kV system length: 787mm

Double tail type total length: 980mm (including 180mm tail extension)

Comparison of current and type

Installation method

Single tail type: suitable for standard drop out fuse bases, easy to install.

Double tailed type: supports parallel connection or special fixed requirements, enhancing mechanical stability.

APPLICATION

In the urban and rural power grid renovation project, 12KV fuse links serve as the core protection unit for ring main units and pole mounted switches.

The collection line protection of new energy power stations such as wind power and photovoltaic power plants can resist lightning strikes and short circuit faults.

Main incoming line protection for high demand locations such as steel, chemical, and data centers.

Backup protection for railway traction substations and airport power supply systems.

Installation and maintenance recommendations

Confirm that the rated voltage and current of the 12KV fuse links base match before installation to avoid mixing.

The detachable head shape needs to ensure that the button mechanism is flexible and there is no jamming phenomenon.

The tail of the double tailed fuse should be kept naturally hanging to avoid twisting under stress.

It is recommended to conduct a visual inspection every 12 months, with a focus on observing whether the arc extinguishing tube has cracks or signs of carbonization.

After the fault is blown, the fuse of the same model must be replaced, and the use of non-standard substitutes is strictly prohibited.

Supply and technical support

Regular models (such as 10K, 50T, 100K) are in stock and can be shipped within 48 hours.

Special specifications (such as 175A, 200A) can be produced according to orders, with a delivery time of 7-10 working days.

SARAH provides a complete time-current curve to assist in system coordination design.

We also support customized lengths and terminal forms to meet special engineering requirements.
