36KV Fuse Links

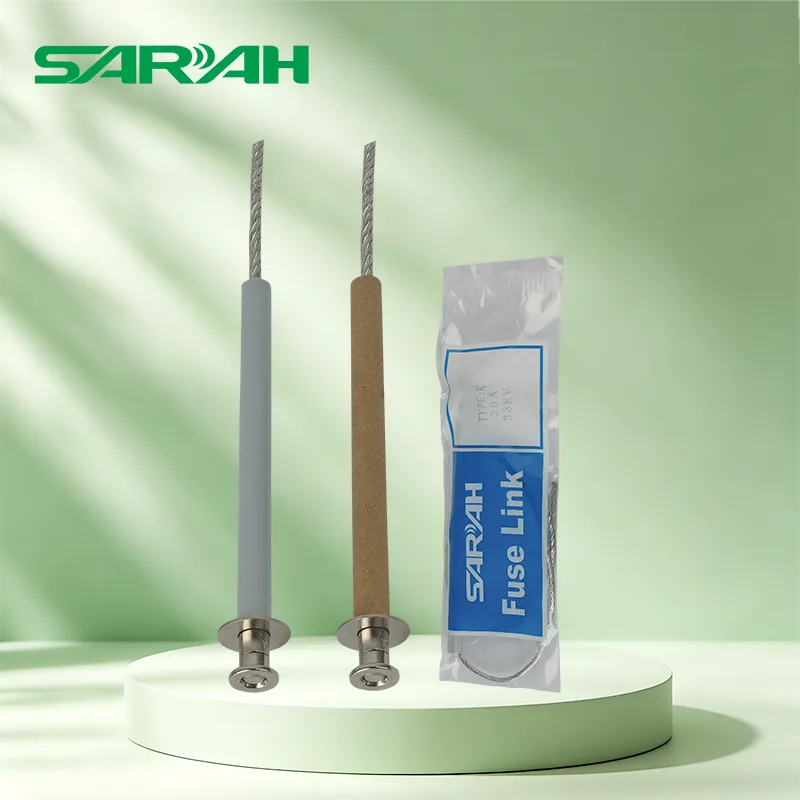

The SARAH Electric brand high-voltage 36KV Fuse Links is designed specifically for 11kV and 33kV distribution systems, providing reliable overload and short-circuit protection. The product adopts impulse arc extinguishing technology, supports detachable and non detachable head designs, and is suitable for single tail and double tail installation requirements. The rated current covers 1A to 200A and conforms to the K-type and T-type fuse characteristics, ensuring precise coordination with upstream and downstream protection equipment.
SARAH Electric durable 36KV Fuse Links are critical protective components in distribution networks, used to quickly cut off circuits in the event of a fault, preventing equipment damage and power outages. SARAH fuses use high-quality materials and precision manufacturing processes to ensure stable operation in harsh environments. The product design complies with IEC and ANSI standards, supports multiple installation methods, and meets the needs of different application scenarios.
Technical Specifications
| Model No. |
Rated Current(A) |
Dimension(mm) | Type | |||||
| d | L(mm) | D | d3 | |||||
|
11kV (Fig.1&2) |
33kV (Fig.1&2) |
Fig.3 | ||||||
| 1K | 1 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 2K | 2 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 3K | 3 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 5K | 5 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 6K | 6 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 7.5K | 7.5 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 8K | 8 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 10K | 10 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 12K | 12 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 15K | 15 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 20K | 20 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 25K | 25 | 19.0±0.2 | 580-600 | 787 | 980 | 2.0 | 6.5 | K、T |
| 30K | 30 | 19.0±0.2 | 580-600 | 787 | 980 | 3.0 | 8.0 | K、T |
| 35K | 35 | 19.0±0.2 | 580-600 | 787 | 980 | 3.0 | 8.0 | K、T |
| 40K | 40 | 19.0±0.2 | 580-600 | 787 | 980 | 3.0 | 8.0 | K、T |
| 50K | 50 | 19.0±0.2 | 580-600 | 787 | 980 | 5.0 | 10.0 | K、T |
| 60K | 60 | 19.0±0.2 | 580-600 | 787 | 980 | 5.0 | 10.0 | K、T |
| 75K | 75 | 19.0±0.2 | 580-600 | 787 | 980 | 5.0 | 10.0 | K、T |
| 80K | 80 | 19.0±0.2 | 580-600 | 787 | 980 | 5.0 | 10.0 | K、T |
| 100K | 100 | 19.0±0.2 | 580-600 | 787 | 980 | 5.0 | 10.0 | K、T |
| 120K | 120 | 19.0±0.2 | 580-600 | 787 | 980 | 5.0 | 10.0 | K、T |
| 140K | 140 | 19.0±0.2 | 580-600 | 787 | 980 | 7.0 | 12.0 | K、T |
| 150K | 150 | 19.0±0.2 | 580-600 | 787 | 980 | 7.0 | 12.0 | K、T |
| 175K | 175 | 19.0±0.2 | 580-600 | 787 | 980 | 7.0 | 12.0 | K、T |
| 200K | 200 | 19.0±0.2 | 580-600 | 787 | 980 | 7.0 | 12.0 | K、T |
Features
We have designed the 36KV Fuse Links with a compact structure that is suitable for installation environments with limited space, as the head single tail fuse cannot be disassembled.
Detachable head single tail fuse, this design is easy to replace and maintain, reducing downtime.
The detachable head dual tail fuse provides additional mechanical strength and tighter electrical connection, making it suitable for high vibration or high current applications.
Wide range of rated parameters
Voltage level: Supports 11kV and 33kV systems to meet different power grid requirements.
Rated current: ranging from 1A to 200A, covering protection needs from small distribution transformers to large industrial loads.
Fuse characteristics: Provides two types of characteristics, K-type (fast fuse) and T-type (delayed fuse), to ensure coordination and cooperation with upstream and downstream protection equipment.
The 36KV Fuse Links adopts a jet type arc extinguishing tube, which can quickly generate gas when fault current passes through, effectively extinguishing the arc, preventing arc reignition, and ensuring system safety.
The fuse tube is made of high-temperature and corrosion-resistant materials, and the flexible wire is made of high-purity copper stranded wire to ensure stable electrical performance and mechanical strength during long-term operation.
Application
36KV Fuse Links are used for branch lines and transformer protection in distribution networks.
It can protect high-value equipment such as electric motors, capacitor banks, and electric furnaces.
New energy projects, the fuse links are suitable for grid protection of photovoltaic power plants and wind farms.
