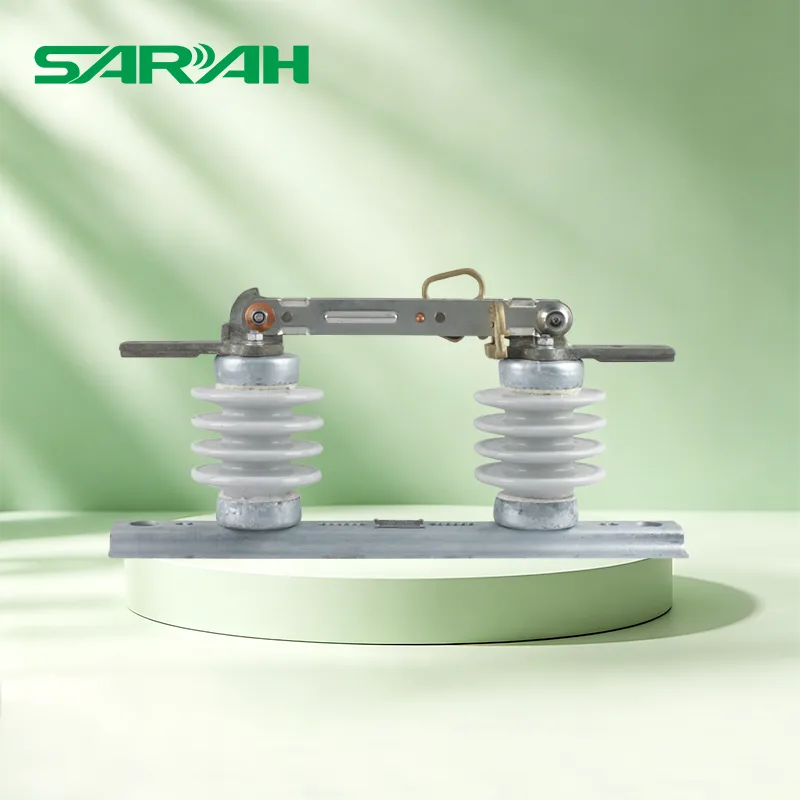

Porcelain Disconnector Switch
As a leading supplier in China's power equipment industry with its own factory, our Porcelain Disconnector Switch, which is a core isolation device for power distribution lines, is suitable for outdoor high voltage environments of 10kV/15kV/24kV/36kV. It is made of porcelain or polymer insulation materials and features insulation, clear disconnection, and convenient installation. It is widely used in outdoor power distribution lines, substations, and industrial and mining enterprises' power systems, enabling load-free circuit disconnection, maintenance isolation, and safe grounding.
The high quality Porcelain Disconnector Switch produced by SARAH Electric strictly complies with the standards of the power industry. Each product undergoes voltage resistance, current flow, and mechanical lifespan tests before leaving the factory. We offer batch customization services. The regular models are in ample stock and we support full-case shipment and mixed packaging delivery. Feel free to inquire at any time!
Product parameters
Disconnector Switch Porcelain Type
| Model No. | Rated Voltage | Rated Current |
Impulse withstand voltage(BIL) |
Creepage distance |
| GW9-15 | 15kV | 400/630A | 110kV | 410mm |
| GW9-24 | 24kV | 400/630A | 125kV | 580mm |
| GW9-36 | 36kV | 400/630A | 150kV | 720mm |
Disconnector Switch Polymer Type
| Model No. | Rated Voltage | Rated Current |
Impulse withstand voltage(BIL) |
Creepage distance |
| GW9-15 | 15kV | 400/630A | 110kV | 410mm |
| GW9-24 | 24kV | 400/630A | 125kV | 580mm |
| GW9-36 | 36kV | 400/630A | 150kV | 720mm |
| Model No. |
Rated Voltage (kV) |
Rated Current (A) |
4S Heat Steady (e.c.A) |
Short Current (A) |
Impulse Withstand Voltage (kV) |
Power-Frequency Withstand Voltage (kV) |
| RH-B | 11 | 400 | 12500 | 31500 | 95 | 42 |
| RH-B | 33 | 600 | 12500 | 31500 | 180 | 80 |
Disconnector Switch Porcelain Type
|
Model No. |
Rated Voltage (kV) |
Rated Current (A) |
Limit Passing Current(kA) |
10-Second Heat Stabilization Current(kA) |
|
| Peak Value | r.m.s | ||||
| SW1-12 | 12 | 400 | 21 | 15 | 10 |
| SW1-15 | 15 | 600 | 35 | 25 | 14 |
Disconnector Switch Polymer Type
|
Model No. |
Rated Voltage (kV) |
Rated Current (A) |
Limit Passing Current(kA) |
10-Second Heat Stabilization Current(kA) |
|
| Peak Value | r.m.s | ||||
| SW2-12 | 12 | 400 | 21 | 15 | 10 |
| SW2-15 | 15 | 600 | 35 | 25 | 14 |
Gang Operated Air Break Switches GOAB-1 Polymer Type
| Model No. | GOAB-1/11 | GOAB-1/33 |
| Rated Voltage | 11kV | 33kV |
| Rated Continuous Current | 200/400/630A AMPS | 200/400/630A AMPS |
| No. Of Poles | 1/3 | 1/3 |
| Type Of Mounting | Vertical /Horizontal | Vertical / Horizontal |
| Rated Frequency | 50Hz | 50Hz |
|
Power Frequency Withstand Voltage Across Isolating Distance. |
32kV | 95kV |
| Power Frequency Withstand Voltage To Earth | 28kV | 90kV |
|
Lightening Impulse Voltage Withstand Test Across The Isolating Distance. |
85kV PEAK | 170kV PEAK |
|
Lightening Impulse Voltage Withstand Test Across Phase To Earth. |
75kV | 160kV |
| Rated Short-Time & Withstand Current | 20kA/50kA For 1 Second | 20kA/50kA For 1 Second |
Core Specifications and Parameters
1. Porcelain Insulation Model
Model: SW1-12/SW1-15, GW9-15/GW9-24/GW9-36
Rated voltage: 12kV/15kV/24kV/36kV
Rated current: 400A/600A
Limit current: Peak 21kA - 35kA, RMS 15kA - 25kA
Thermal stability current: 10kA - 14kA (10 seconds)
Impact withstand voltage: 110kV - 150kV
Cable insulation distance: 410mm - 720mm
2. Silicone Insulation Type (Polymer Type)
Model: SW2-12/SW2-15, GW9-15/GW9-24/GW9-36
Rated voltage: 12kV/15kV/24kV/36kV
Rated current: 400A/600A
Impact withstand voltage: 110kV - 150kV
Cable insulation distance: 410mm - 720mm
Weather resistance performance: Resistant to ultraviolet rays and aging, suitable for coastal/high humidity environments
3. Interconnected Type (GOAB-1 Series)
Rated voltage: 11 kV / 33 kV
Rated current: 200A/400A/630A
Power frequency withstand voltage: 32kV - 95kV (between phases), 28kV - 90kV (to ground)
Short-circuit tolerance: 20kA/50kA (1 second)
Installation method: Vertical/Lateral Universal
Product Advantages
1. The porcelain bottle model is made of high-strength electroceramic, with stable insulation performance; the silicone model is resistant to dirt, weathering, and impact, reducing the risks of outdoor aging and damage, and is suitable for complex environments such as rain, snow, sand, and coastal salt spray.
2. Integrated metal frame + brass conductive components, with low contact resistance and low heat generation; the switch disconnection position is clearly defined, forming a visible break, meeting the safety standards for power maintenance procedures of "power off - electrical testing - grounding".
3. The base is equipped with universal installation holes, allowing it to be directly fixed onto poles or supports without any additional modifications. Both single-pole and three-pole options are available, suitable for new lines as well as the upgrading of old lines.
Application Scenarios
In outdoor power distribution lines, Porcelain Disconnector Switch can be used for isolating and inspecting 10kV rural and urban power lines.
Substation support: Circuit breakers at the front end of the high-voltage cabinets for circuit isolation
Industrial and mining enterprises: Factories, mines, outdoor power systems of photovoltaic power stations
Infrastructure: Distribution lines along highways and railways
Delivery and Services
Current stock: Regular models (SW1-12, GW9-15, etc.) have sufficient stock and will be shipped within 48 hours.
Batch support: Supports full-container shipping, mixed container loading, and adaptable to international trade logistics requirements.
Customized service: The rated current, insulation material and installation dimensions can be adjusted according to customer requirements.
After-sales guarantee: Provide parameter guidance for Porcelain Disconnector Switch, installation support, and prompt response to quality issues.
FAQ
1. How to choose between the porcelain bottle version and the silicone version?
For ordinary dry environments, choose the porcelain bottle model, which offers good value for money; for coastal, high-humidity, and heavily polluted environments, select the silicone model, which has stronger weather resistance and a longer lifespan.
2. Is the product suitable for overseas markets?
The Porcelain Disconnector Switch complies with international standard power requirements and is suitable for 11kV/33kV power distribution systems in regions such as Southeast Asia, the Middle East, and Africa. It also supports the provision of export certification materials.
3. What should be noted during the installation process?
During installation, ensure that the circuit breaker operates smoothly and the grounding is reliable. For outdoor installations, it is recommended to pair with a rainproof cover to extend the service life.
