Surge Arrester Discharge Counter
Choose Sarah Electric as your supplier, our JS-8 and JCQ series Surge Arrester Discharge Counter are the core monitoring equipment for high-voltage distribution systems. We can accept customization, and the zinc oxide lightning arrester is designed to be matched. It can record the number of lightning discharges in real time, monitor leakage current, and accurately grasp the operation status of the lightning arrester. It can assist in early warning of aging, breakdown, and other faults. If you are interested in our products, feel free to contact us anytime!
Surge Arrester Discharge Counter is manufactured and produced by SARAH Electric in its own factory in China. It is widely used in 10kV-220kV substations, outdoor power lines, industrial and mining distribution rooms, and photovoltaic power stations. It is a key component to ensure the reliable operation of lightning protection systems and reduce line lightning faults.
Core product parameters
Surge Arrester Discharge Counter
|
Model No. |
Rated Voltage(kV) |
Nominal Discharge Current (kA) |
Operation Current Range |
Current Impulse Residual Voltage (kV) |
Long Impulse Withstand Current 2ms (A) |
4/10 High Current Impulse Withstand(kA) |
| JS-8 | 3-66 | 5 | 50-5000 | <1 | 400-800 | 65-100 |
| JCQ | 3-220 | 10 | 50-5000 | <1 | 600-800 | 100 |
Surge Arrester Disconnector
| Power Frequency Current(A rms) |
2000 μs Long Duration Current Impulse(A) |
4/10 μs High Withstand Current(kA) |
|
| Time in Seconds | Current Level | ||
| <0.2 | 20 | 600 | 100 |
| <0.05 | 300 | ||
| <0.02 | 800 | ||
Low Voltage Surge Arrester Porcelain type
| Destination | Code No. |
System Voltage kV (r,m,s) |
Rated Voltage kV (r,m,s) |
MCOV kV (r,m,s) |
8/20 μs Lighting Current Impulse kV(crest) |
Reference Voltage At 1mA DC kV |
Long Impulse Withstand Current 2000μs A(crest) |
4/10 μs High Current Impulse Withstand kV(crest) |
|
Low Voltage |
YC1.5W-0.28/1.3 | 0.22 | 0.28 | 0.24 | 1.3 | 0.6 | 50 | 10 |
| YC1.5W-0.5/2.6 | 0.38 | 0.5 | 0.42 | 2.6 | 1.2 | 50 | 10 |
Zinc Oxide Varister Block
|
Model No. |
Dimension(mm) |
Nominal Standard Discharge Current (kA) |
Rated Voltage (kV) |
MCOV (kV) |
8/20 μs Lightning Impulse Residual Voltage (kV) |
2000/ μs Square Impulse Current Withstand (A) |
4/10 μs High Current Impulse (kA) |
|
| Diameter | Height | |||||||
| D30 | Φ30±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.1 | 100 | 65 |
| D32 | Φ32±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.3 | 100 | 65 |
| D35 | Φ35±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.1 | 100 | 65 |
| D38 | Φ38±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.3 | 200 | 65 |
| D40 | Φ40±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.1 | 250 | 100 |
| D42 | Φ42±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.2 | 250 | 100 |
| D48 | Φ48±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.0 | 400 | 100 |
| D53 | Φ53±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 8.9 | 400 | 100 |
| D60 | Φ60±0.2 | 24±0.5 | 20 | 3-3.4 | 2.55 | 9.1 | 600 | 100 |
| D70 | Φ70±0.2 | 24±0.5 | 20 | 3-3.4 | 2.55 | 9.2 | 800 | 100 |
Core specification parameters
|
Parameter |
Specifications |
|

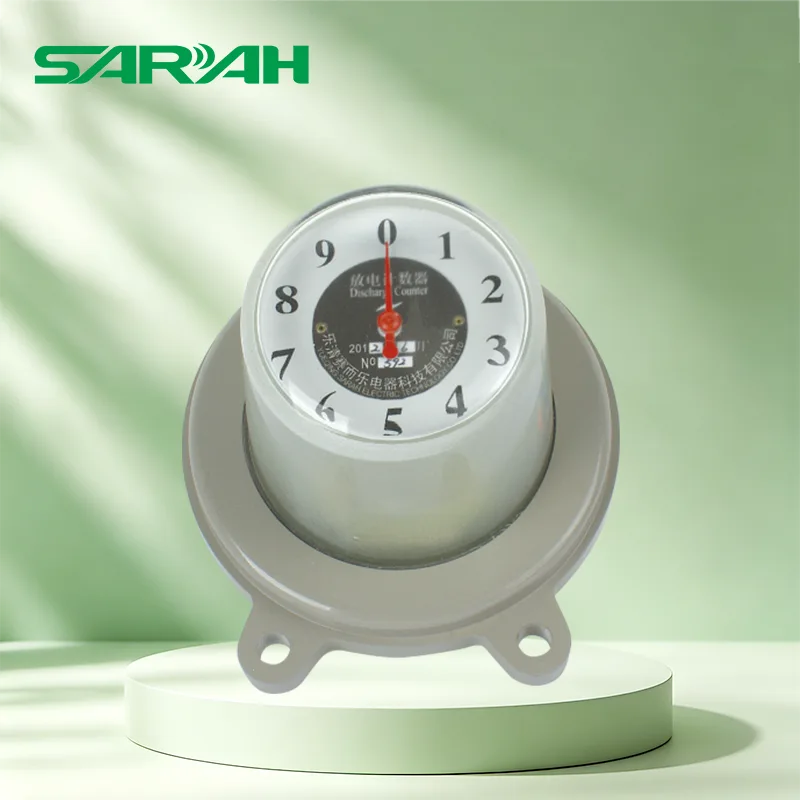

Product Model |
JS-8 Discharge Counter (Pure Counting Model) |
|
Rated Voltage |
3-66kV |
|
Nominal Discharge Current |
5kA |
|
Working Current Range |
50-5000A |
|
Impact Residual Voltage |
＜1kV |
|
Long Duration Impact Resistance |
400-800kV |
|
4/10μs High Impact Current Resistance |
65-100kA |
|
Counting Range |
0-9 times (Mechanical Pointer Type) |

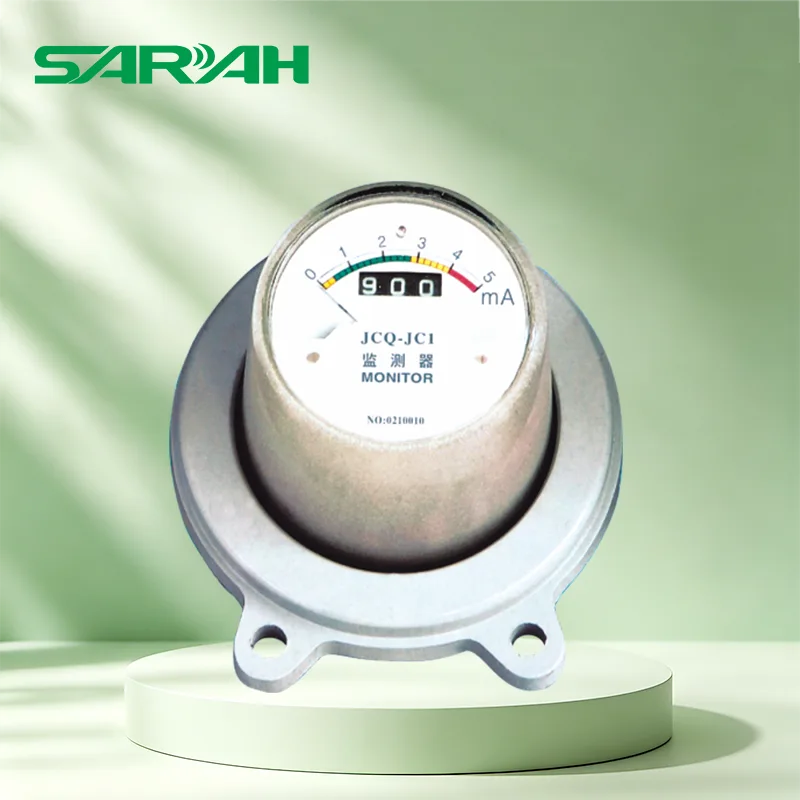

JCQ leakage current monitor (counting+monitoring version)
|
Parameter |
Specifications |
|
Rated Voltage |
3-220kV |
|
Nominal Discharge Current |
10kA |
|
Working Current Range |
50-5000A |
|
Impact Residual Voltage |
＜1kV |
|
Long Duration Impact Resistance |
600-800kV |
|
4/10μs High Impact Current Tolerance |
100kA |
|
Monitoring Range |
0-5mA (Pointer + Digital Dual Display) |
|
Status Indication |
Green Zone: Normal Operation; Yellow Zone: Warning; Red Zone: Fault |
Product advantages
1. Surge Arrester Discharge Counter focuses on counting the number of lightning strikes, and the mechanical pointer remains stable without jumping; JCQ integrated leakage current monitoring, pointer+digital dual display, intuitively judges the insulation status of lightning arrester, and can grasp operational data without disassembling the machine.
2. The shell is made of high-strength insulation material, fully sealed waterproof and dustproof design, resistant to ultraviolet rays, high and low temperatures, suitable for harsh outdoor environments such as rain, snow, sand, coastal salt spray, etc., and can operate for a long time without water ingress or failure.
3. The base is reserved with standard installation holes, which can be directly fixed to the grounding terminal of the lightning arrester without additional modification; Suitable for the full range of 3kV-220kV zinc oxide lightning arresters, compatible with both new and old lines.
4. There are no vulnerable parts inside, and there is no need for regular calibration or battery replacement. The mechanical structure is stable and reliable, with a service life of over 10 years, reducing operation and maintenance costs.
Application
Substation supporting facilities: Main transformer, switch cabinet lightning arrester operation monitoring
Outdoor power lines: lightning protection statistics for 10kV/35kV rural and urban power lines
Industrial and mining enterprises: Monitoring of lightning protection systems in power distribution rooms of factories and mines
New energy power station: Status monitoring of lightning arresters for photovoltaic and wind farms
Shipment and Service
JS-8 and JCQ regular models have sufficient stock and can be quickly shipped within 48 hours
SARAH supports bulk ordering of Surge Arrester Discharge Counters, supports full container shipping, LCL mixed loading, adapts to international trade logistics needs, and can customize neutral packaging
Each product undergoes impact testing and sealing testing before leaving the factory, in compliance with IEC international standards
Frequently Asked Questions
1. How to choose JS-8 and JCQ?
Just need to count the number of lightning strikes and choose JS-8 (cost-effective); JCQ (with more comprehensive functions) should be selected to simultaneously monitor leakage current and determine the health status of lightning arresters.
2. Is the product suitable for overseas markets?
Surge Arrester Discharge Counter complies with international common power standards and is suitable for 3kV-220kV distribution systems in Southeast Asia, the Middle East, Africa, Latin America, and other regions. It supports providing export certification materials.
3. What should be noted during installation?
When installing, remember to ensure reliable grounding, and connect the counter in series with the grounding terminal of the lightning arrester; It is recommended to do a good job of waterproof sealing for outdoor installation to extend the service life.
