Surge Arrester Disconnector
SARAH Electric offers Surge Arrester Disconnector with factory direct price. It is designed to complement Surge Arresters, covering models such as JS-8 and JCQ, and meeting multi scenario requirements from low to high voltage, counting to monitoring. The product accurately records the number of discharges and monitors leakage current in real time to assist in lightning protection operation and maintenance of the power system, ensuring the safe and stable operation of equipment.
SARAH Electric Surge Arrester Disconnector has sufficient stock and supports fast shipping. For bulk orders or customized requirements (such as special voltage levels and current parameters), exclusive solutions can be provided, and delivery times can be negotiated. Welcome to visit the factory outside at any time. We have a professional team and consultants to lead you to open the door of lightning protection equipment!
Core product parameters
Surge Arrester Discharge Counter
|
Model No. |
Rated Voltage(kV) |
Nominal Discharge Current (kA) |
Operation Current Range |
Current Impulse Residual Voltage (kV) |
Long Impulse Withstand Current 2ms (A) |
4/10 High Current Impulse Withstand(kA) |
| JS-8 | 3-66 | 5 | 50-5000 | <1 | 400-800 | 65-100 |
| JCQ | 3-220 | 10 | 50-5000 | <1 | 600-800 | 100 |
Surge Arrester Disconnector
| Power Frequency Current(A rms) |
2000 μs Long Duration Current Impulse(A) |
4/10 μs High Withstand Current(kA) |
|
| Time in Seconds | Current Level | ||
| <0.2 | 20 | 600 | 100 |
| <0.05 | 300 | ||
| <0.02 | 800 | ||
Low Voltage Surge Arrester Porcelain type
| Destination | Code No. |
System Voltage kV (r,m,s) |
Rated Voltage kV (r,m,s) |
MCOV kV (r,m,s) |
8/20 μs Lighting Current Impulse kV(crest) |
Reference Voltage At 1mA DC kV |
Long Impulse Withstand Current 2000μs A(crest) |
4/10 μs High Current Impulse Withstand kV(crest) |
|
Low Voltage |
YC1.5W-0.28/1.3 | 0.22 | 0.28 | 0.24 | 1.3 | 0.6 | 50 | 10 |
| YC1.5W-0.5/2.6 | 0.38 | 0.5 | 0.42 | 2.6 | 1.2 | 50 | 10 |

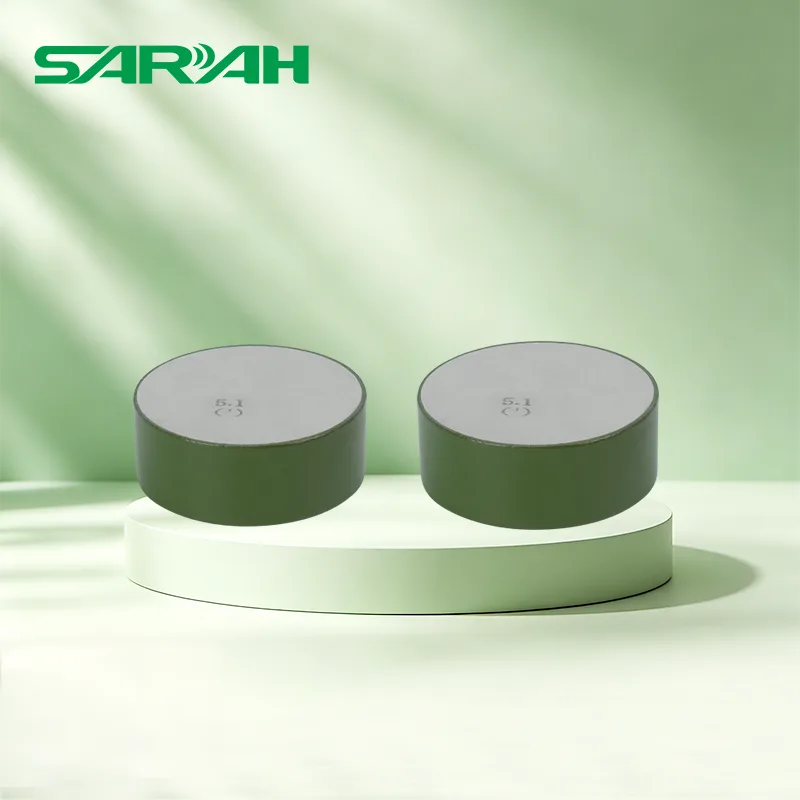

Zinc Oxide Varister Block
|
Model No. |
Dimension(mm) |
Nominal Standard Discharge Current (kA) |
Rated Voltage (kV) |
MCOV (kV) |
8/20 μs Lightning Impulse Residual Voltage (kV) |
2000/ μs Square Impulse Current Withstand (A) |
4/10 μs High Current Impulse (kA) |
|
| Diameter | Height | |||||||
| D30 | Φ30±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.1 | 100 | 65 |
| D32 | Φ32±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.3 | 100 | 65 |
| D35 | Φ35±0.2 | 24±0.5 | 5 | 3-3.4 | 2.55 | 9.1 | 100 | 65 |
| D38 | Φ38±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.3 | 200 | 65 |
| D40 | Φ40±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.1 | 250 | 100 |
| D42 | Φ42±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.2 | 250 | 100 |
| D48 | Φ48±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 9.0 | 400 | 100 |
| D53 | Φ53±0.2 | 24±0.5 | 10 | 3-3.4 | 2.55 | 8.9 | 400 | 100 |
| D60 | Φ60±0.2 | 24±0.5 | 20 | 3-3.4 | 2.55 | 9.1 | 600 | 100 |
| D70 | Φ70±0.2 | 24±0.5 | 20 | 3-3.4 | 2.55 | 9.2 | 800 | 100 |
Application scenarios and advantages
1. Application scenarios
Substations, transmission lines, distribution rooms, etc. are equipped with lightning arresters to record the number of lightning strikes/overvoltage discharges and monitor leakage currents.
Factory power distribution system, large equipment (such as fans and motors) lightning protection, real-time monitoring of the health status of lightning arresters.
The lightning protection grounding system for high-rise buildings and commercial buildings, as well as low-voltage lightning arresters, can ensure electrical safety.
2. Product advantages

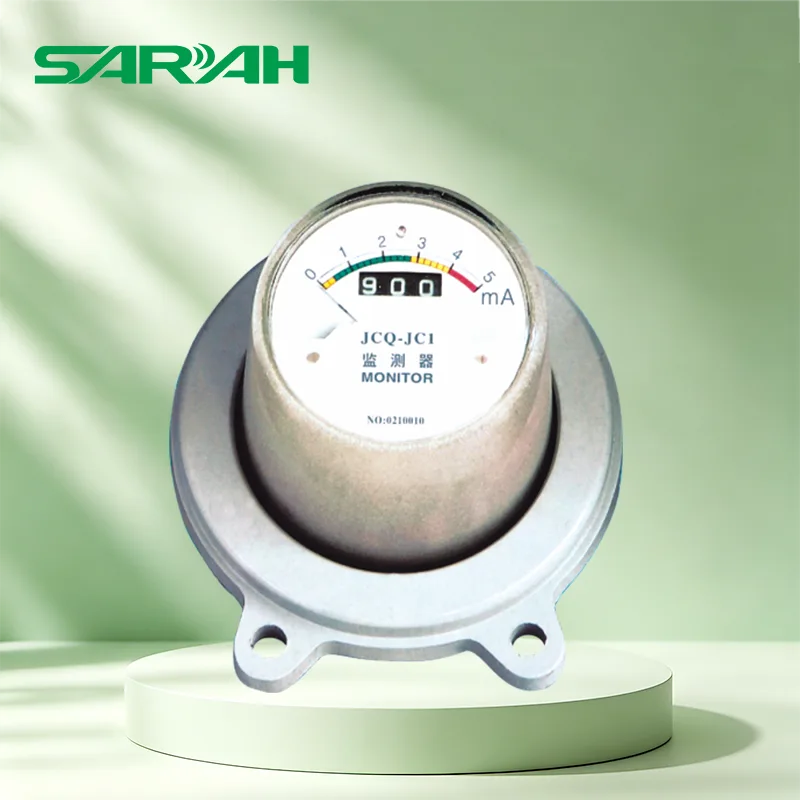

The discharge counter clearly records the number of actions, and the JCQ monitor displays the leakage current in real time (such as JCQ-JC1 monitor with an accuracy of mA level).
Wide voltage range (3-220kV), strong impulse withstand (such as JS-8 withstand 4/10 μ s high amplitude impulse 65-100kA), suitable for complex power grid environments.
Ceramic sleeve and modular design, Surge Arrester Disconnector adapts to different lightning arrester structures; The disconnector quickly disengages from the faulty lightning arrester to avoid system risks.
FAQ
How does a discharge counter work?
By recording the current pulses during the operation of the lightning arrester and accumulating the number of discharges, the frequency of lightning strikes/overvoltage can be intuitively reflected.
What is the function of the monitor?
Real time monitoring of lightning arrester leakage current. If the current rises abnormally, it indicates the aging/failure of the lightning arrester and provides early warning for maintenance.
Purchase suggestions
If you need to record the number of discharges: choose JS-8 (medium low voltage) or JCQ (high voltage).
If real-time monitoring of leakage current is required: choose JCQ-JC1 monitor (with digital display, high accuracy).
If low-voltage lightning protection is required: choose YC1.5W series porcelain bushing lightning arrester, suitable for 0.22/0.38kV system.
If customized valve plates are required: Choose D30~D70 series zinc oxide valve plates according to the system voltage and current requirements.
