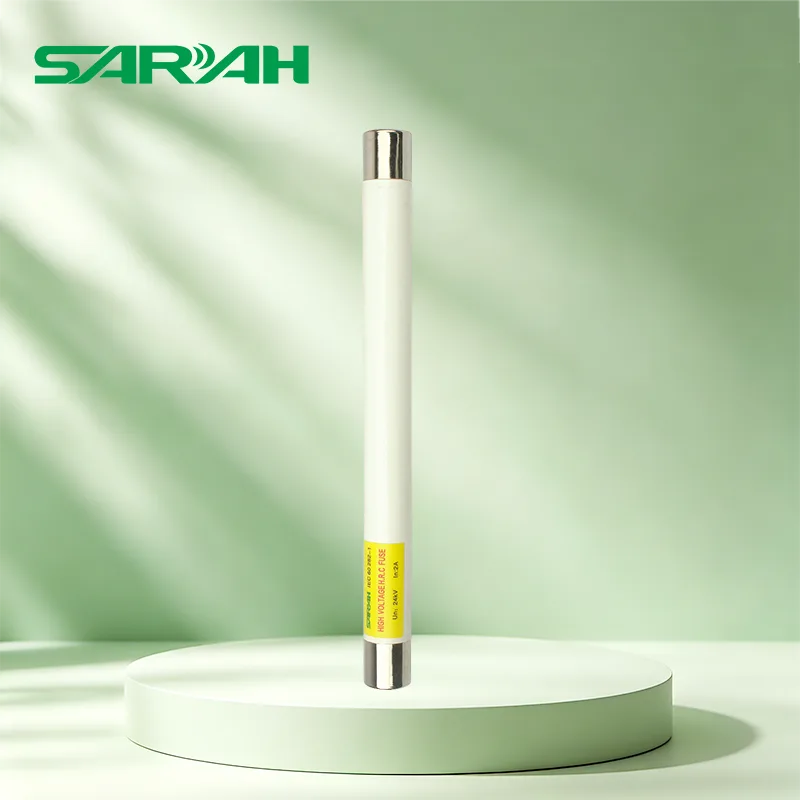

12KV HRC Current-limiting Fuse

The SARAH Electric's 12KV HRC Current-limiting Fuse is meticulously designed in accordance with international and domestic standards such as IEC and GB. It achieves rapid circuit breaker operation through the current-limiting principle, capable of limiting and cutting off the fault current before it reaches its peak value in the event of a short-circuit fault. This effectively prevents the impact of the fault current on equipment such as transformers, switch cabinets, and lines

Product Series and Core Technical Parameters

Product Series Classification

The SARAH high voltage current limiting fuse is divided into two main series, which are suitable for different application

XRNP Series: High-voltage current-limiting fuses for voltage transformer protection, featuring low current and high breaking capacity, suitable for short-circuit protection of voltage transformers and small-capacity equipment.

XRNT Series: High voltage current-limiting fuses for transformer protection, covering a wide current range, suitable for main circuit protection of distribution transformers, switch cabinets, and lines, etc.

Parameter Table for All Voltage Levels

Analysis of Core Performance Parameters

With a maximum current of 50kA and 12KV, the HRC Current-limiting Fuse can handle extreme short-circuit faults, quickly cutting off the faulty current and protecting the equipment from damage.

Suitable for a full temperature range of -40℃ to +60℃, resistant to ultraviolet rays, resistant to high humidity and heat, and resistant to salt fog. It is suitable for various outdoor and indoor scenarios.

The 12KV HRC Current-limiting Fuse is equipped with high-temperature-resistant and high-insulation ceramic/epoxy housing. Its withstand voltage under normal frequency and lightning impulse conforms to international standards.

Core Functions and Advantages of the Product

Core Protection Functions

1. When a short circuit fault occurs in the line or equipment, the fuse instantly melts, cutting off the faulty current within milliseconds, preventing the accident from escalating and avoiding the damage to transformers and switch cabinets.

2. When the load exceeds the rated current for a long time, the fuse gets overheated and melts, achieving overload protection and ensuring the long-term stable operation of the equipment.

3. After melting, a distinct electrical break occurs, meeting the safety isolation requirements for power maintenance and eliminating the need for an additional isolating switch.

4. Pure mechanical thermal effect action. The 12KV HRC Current-limiting Fuse does not rely on secondary power supply or control circuit. Even in extreme power failure situations, it can still provide normal protection.

Core Product Advantages

Covering all voltage levels from 3.6kV to 40.5kV, and all current ranges from 0.5A to 200A.

Using high temperature resistant and anti-aging materials, it can operate outdoors for a long time without performance degradation, and its service life exceeds 15 years.

Standardized size design, compatible with mainstream switch cabinets and fuse holders both at home and abroad. No need for customization or modification. Installation and maintenance are simple.

Company Strength and Supply Capacity

Enterprise strength

Sarah Company strictly adheres to the ISO9001 quality management system. From raw material procurement, production processing to product delivery, each process undergoes strict quality inspection. The products have obtained certifications from international and domestic standards such as IEC, ANSI, and GB. They are exported to global markets including Southeast Asia, the Middle East, Europe, America, and Africa. They have served over ten thousand power projects and are the core suppliers for domestic and foreign power grid companies and complete equipment factories.

Delivery and Services

1. The inventory is sufficient: The regular 10kV/35kV and XRNP/XRNT full range of mainstream models are always in stock. Orders placed today will be shipped today, and urgent orders can be delivered within 24 hours.

2. The 82 12KV HRC Current-limiting Fuse offers the flexibility to customize non-standard current, voltage and size. The customization period ranges from 7 to 15 working days, meeting the requirements of special projects.

3. Supports various trade terms such as FOB, CIF, EXW, etc. Can handle shipments from multiple ports across the country including Ningbo and Shanghai. Provides comprehensive logistics solutions including sea freight, air freight, and express delivery.

4. One-stop technical service: Offer selection consultation, parameter matching, installation guidance, and after-sales technical support. The professional technical team can customize protection solutions based on the project scenario to solve selection problems.

5. After-sales Guarantee: The product comes with a 18-month warranty period and lifetime technical support. We respond promptly to customers' after-sales requests to ensure the smooth operation of the project.
