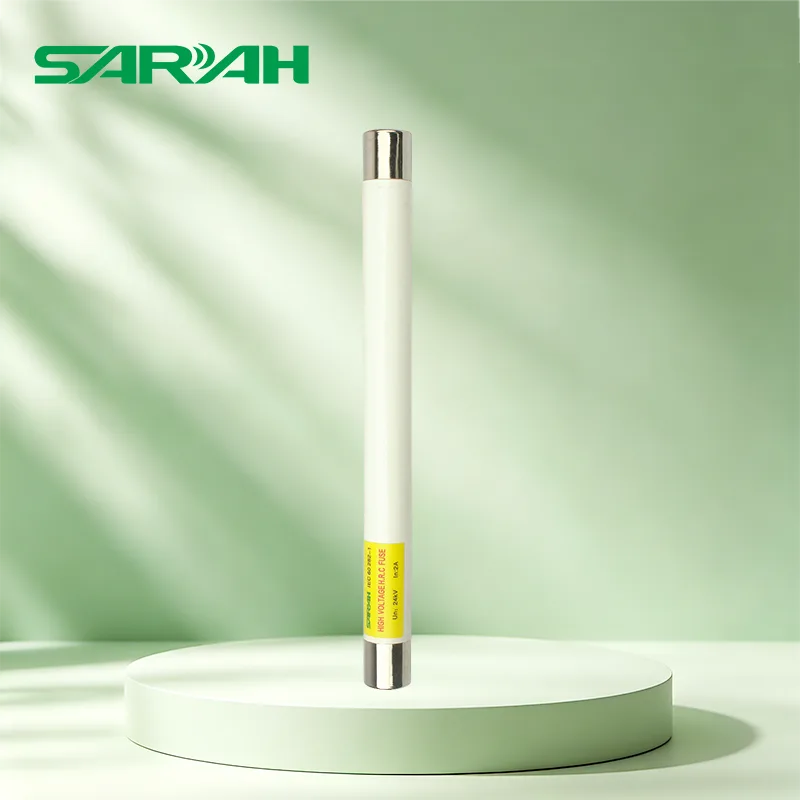

7.2KV HRC Current-limiting Fuse

The SARAH durable 7.2KV HRC Current-limiting Fuse, a core protective component, adopts HRC current-limiting technology and integrates three core functions: rapid short-circuit cut-off, overload thermal melting, and maintenance isolation. The product operates based on pure mechanical thermal effect (without reliance on a secondary power source), providing stable protection for equipment such as transformers, lines, switch cabinets, and reactive power compensation devices under extreme conditions. Currently, there is an ample supply of the product, and it supports batch customization.

Core Function

1. When a short circuit fault occurs in the line or equipment, the fuse instantly melts due to its HRC current-limiting characteristic, quickly cutting off the fault current (the rated breaking current can reach up to 50kA), effectively suppressing the peak value of the short circuit current, preventing the fault from spreading to related equipment such as transformers and switch cabinets, and reducing the risk of system damage.

2. When the load operates continuously beyond the rated current, the fuse gradually heats up and melts due to the thermal accumulation effect, precisely protecting the transformer, lines, and switch cabinets from being burned out due to overload. It is particularly suitable for the continuous operation safety of equipment such as transformers and reactors in 11-36kV systems that are sensitive to overload.

3. After melting, a clear break point is formed, which meets the maintenance requirements stipulated in the "Electric Power Safety Work Procedures" of "power off, electrical testing, and installation of grounding wires", ensuring the safety of maintenance personnel and simplifying the power-off maintenance process.

4. 7.2KV HRC Current-limiting Fuse is triggered by pure mechanical thermal effect and does not rely on secondary power supply or control circuit. It can still operate stably even in extreme conditions (such as power failure or control circuit failure), ensuring that the high-voltage system is "protected even when there is no electricity".

Main Applications

1. Adapted for the main protection on the incoming side of 10kV, 20kV, and 35kV oil-immersed/dry-type transformers. It covers the XRNP (current-limiting type) and XRNT (high-breaking capacity type) series, effectively protecting the transformers from insulation breakdown and winding burnout caused by short circuits and overloads.

2. For rural power grids, park power grids, outdoor overhead lines and branch lines of industrial and mining enterprises, the 7.2KV HRC Current-limiting Fuse provides dual protection against short circuits and overloads, and is suitable for complex outdoor environments (such as humidity, dust, and large temperature differences), thereby reducing the probability of line faults and power outages.

Product Series and Parameters

Company Strengths

The sales network covers over 30 provinces and cities across the country. We have established long-term cooperation with State Grid, South Grid and many large industrial and mining enterprises. We have sufficient inventory for spot purchase (regular models are dispatched within 72 hours, custom models are delivered within 15 working days). The technical support team provides full-process services including model selection guidance, on-site debugging and after-sales maintenance.

Delivery and Services

The regular models such as XRNP1/XRNP2, XRNT1, etc. (such as 3.6kV, 7.2kV, 12kV small and medium current specifications) are in ample stock. Orders will be dispatched within 48 hours after placing. Express delivery services such as SF Express and Deppon are supported for expedited delivery.

For models with high current, special voltages (such as 36(40.5)kV non-standard specifications), and special installation requirements, we offer free technical selection + 15-day customized production, and provide full progress tracking.

7.2KV HRC Current-limiting Fuse comes with a 2-year warranty. It is free to replace if it is not damaged by human factors. Online technical consultation and on-site fault analysis are provided to ensure the stable operation of the system.
